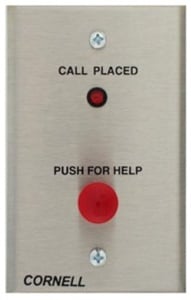

The Cornell E-101 is a helpful component of the Cornell Visual 4000 Nurse Call System, which is ideal for hospitals, assisted living facilities, and other medical buildings. To place a call, simply press the red button that is located on the satin finished stainless steel faceplate. A red LED indicator glows steadily to signify that a call has been placed. To cancel a call on the E-101, simply press the red button again.
The 4 ½ ”H x 2 ¾ ”W E-101 can be surface mounted on a Wiremold 5748, or flush mounted on a standard outlet ox with a single gang ring. The required field wiring terminations are with screws no larger than a 16-gauge wire. The ideal environment for the E-101 is 50-120°F, and the E-101 requires a power of 24 VDC. The requirements for wiring include a #22 AWG minimum, and #16 AWG for the maximum.
SKU | E-101 |
---|---|
UPC | 693892960042 |
Condition | New |
Manufacturer | Cornell |
