TekTone SS106 Transformer 8/16/24 V 30VA required for PK601A with dome lights

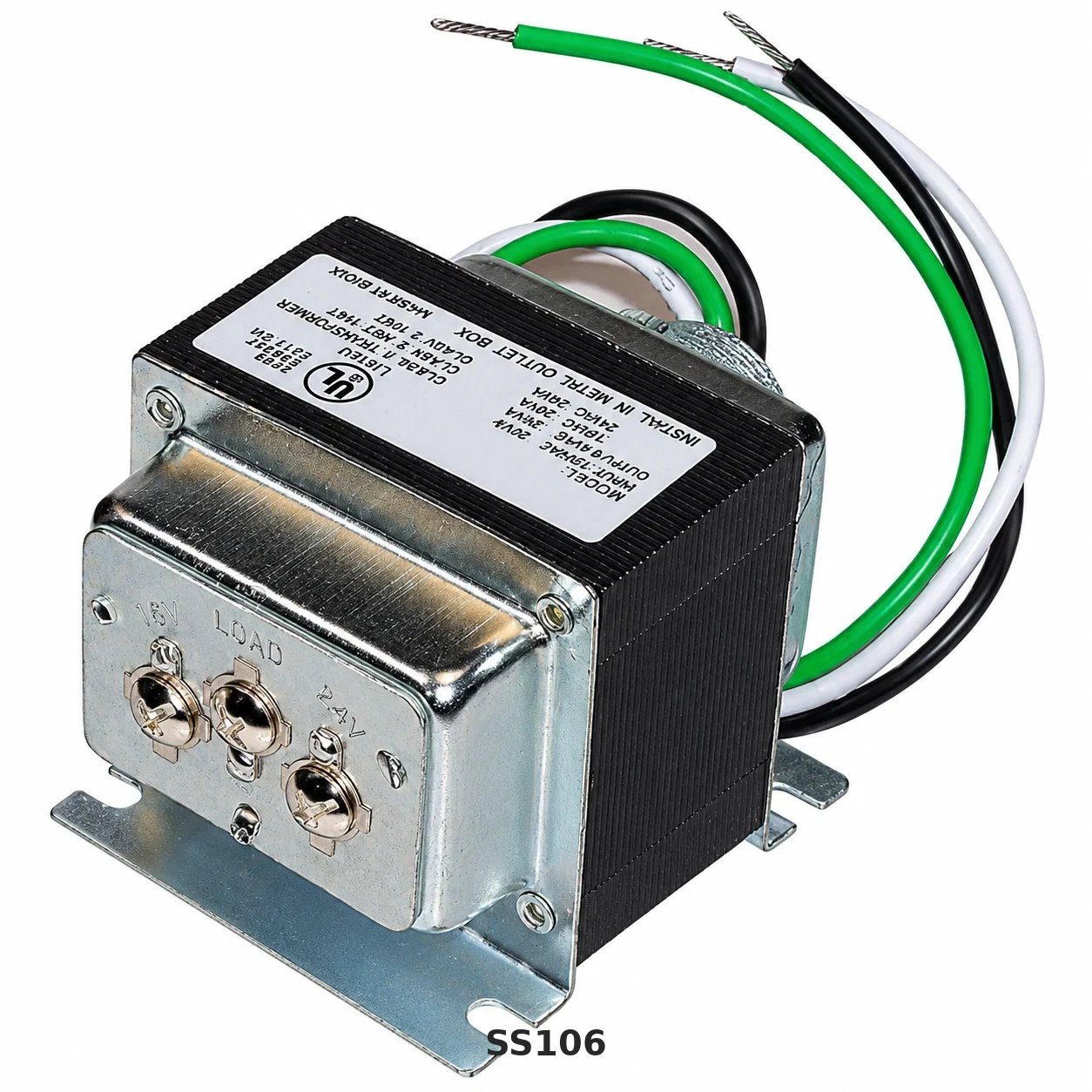

TekTone SS106 Dome Light Call Signaling Transformer

TekTone SS106 Transformer is an adjustable low-voltage AC power supply designed for use with many TekTone Tek-CARE® systems. The SS106 provides 8 VAC, 16 VAC, or 24 VAC output and is rated up to 30 VA, depending on the selected output voltage. It is required for use with the PK601A when powering dome lights.

The SS106 is a UL® Listed Class 2 transformer with built-in thermal protection that automatically shuts off if the transformer becomes excessively hot. It is designed for surface mounting or installation through a standard 1/2-inch hole in an electrical box. The transformer can be installed in either a plastic or metal electrical box. Primary connections are made using stripped wire leads and a ground wire, while secondary connections are made using screw-type terminals.

Features

• Adjustable output of 8 VAC, 16 VAC, or 24 VAC
• UL® Listed Class 2 transformer
• Stripped wire leads for primary connections
• Screw-type terminals for secondary connections
• Built-in thermal protection for safe operation
• Can be surface mounted or installed through a standard 1/2-inch hole in an electrical box

Technical Specifications

• Primary Voltage: 120 VAC
• Secondary Voltage / Power: 8 VAC, 20 VA; 16 VAC, 30 VA; 24 VAC, 30 VA
• Faceplate Dimensions: 1.25"H × 5.875"W (31.8 mm × 149 mm)
• Case Width: 0.9375" (24 mm)
• Case Depth: 1.4375" (35 mm)
• Latch Opening: 1.375" (35 mm)

Compatibility

The SS106 is compatible with TekTone systems, including:

• CM800 Emergency Call System
• DS100 Door Sentry & Emergency Alarm System
• NC110 Nurse Call System
• NC150 Nurse Call System
• NC200 Nurse Call System
• PK601A Power & Control Unit when used for dome light signaling, such as with NC506ES and NC507ES Remote Receivers
