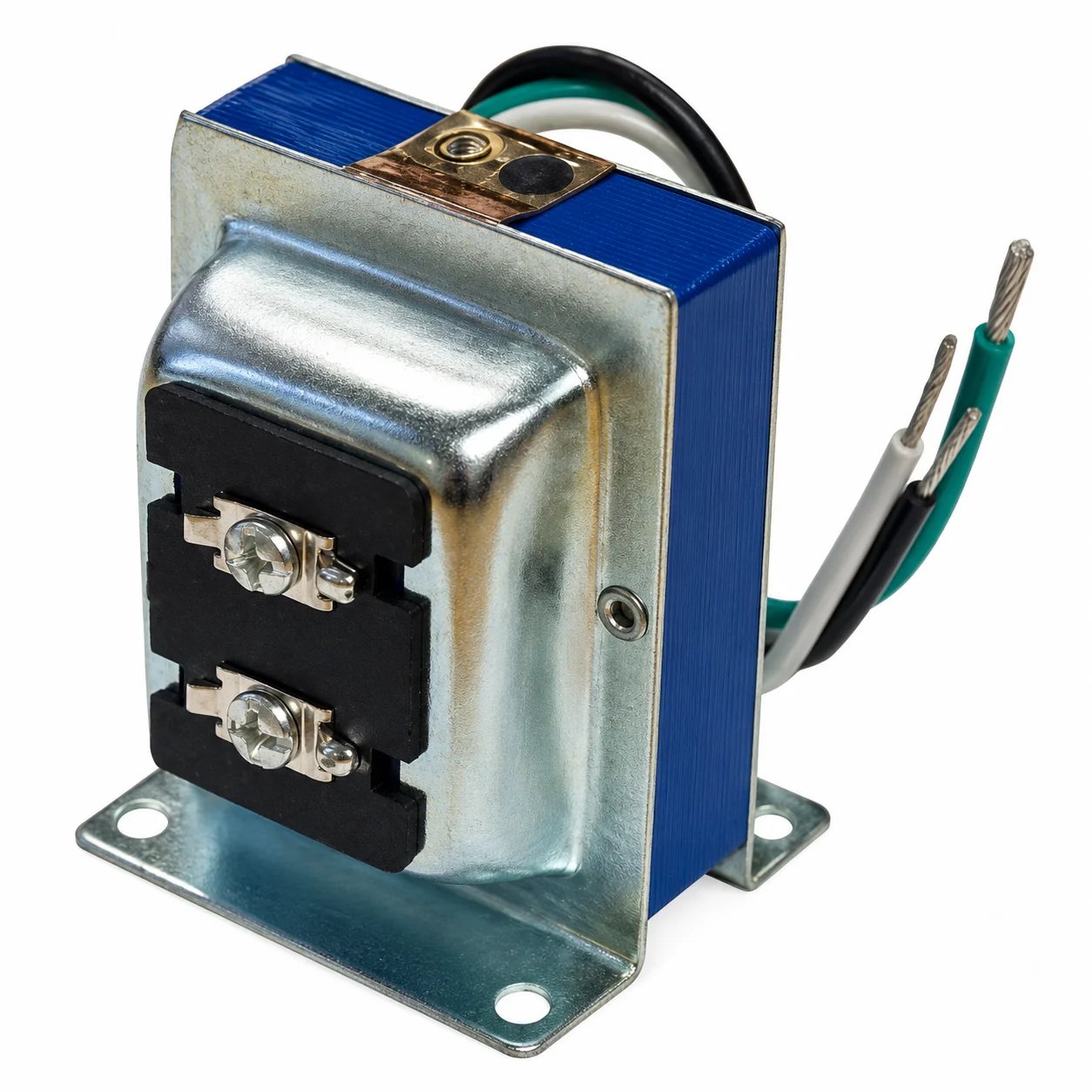

TekTone SS102A Transformer 16 VAC, 10 VA, UL® Listed

TekTone SS102A Nurse Call System Transformer

TekTone SS102A Transformer provides a compact, easy-to-install low-voltage AC power source for use with various TekTone® intercom systems. The SS102A is a UL® Listed Class 2 transformer and is designed to safely shut down if it becomes overheated.

Features

• Compact, easy-to-install low-voltage AC power source
• UL® Listed Class 2 transformer
• Safely shuts down if overheated
• Designed for surface installation or installation in a standard 1/2-inch knockout
• Can be installed in either plastic or metal electrical boxes
• Primary wire connections are made using pre-stripped pigtails and a ground wire
• Secondary connections are made using screw terminals

Technical Specifications

• Primary: 120 VAC
• Secondary: 16 VAC, 10 VA
• Dimensions: Not specified separately for the SS102A by TekTone. The official IL127 specification sheet includes a dimensions section for the combined SS102A/SS106/PO001 document, but the transformer-specific dimensions are not individually identified.

Compatibility

The SS102A is designed for use with various TekTone® intercom systems. TekTone does not provide a model-specific compatibility list for the SS102A in the specification information reviewed.
