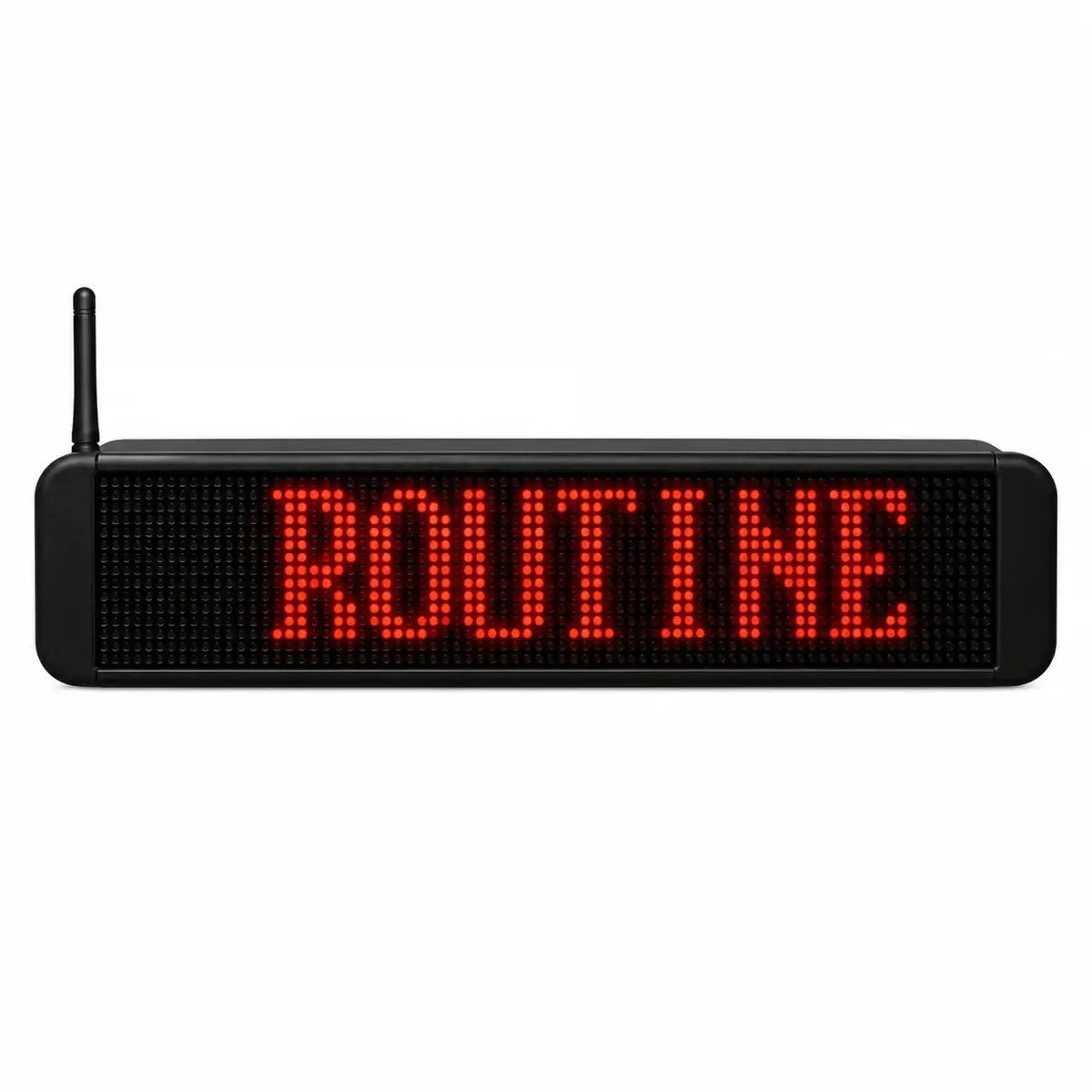

TekTone SI005 LED Messaging Sign

TekTone SI005 Nurse Call Visual Messaging

TekTone SI005 LED Messaging Sign is a radio paging receiver with a large one-line alphanumeric display. It is designed for use with TekTone's Tek-ALERT Alert Integration Manager, Tek-CARE 400 Nurse Call, Tek-CARE 500 Wireless Emergency Call, and Tek-CARE 550 Wireless Nurse Call Systems.

The SI005 stores up to 24 messages. Messages are deleted after a predetermined length of time. When the 24-message limit is exceeded, the oldest messages are automatically deleted first as new messages arrive.

The SI005 may be configured for annunciation via audible tones. It is pre-programmed to receive call information from TekTone systems and can be programmed for up to six CAP codes.

Features

• One-line backlit LED display
• Displays 10 to 40 alphanumeric characters per line
• Configurable for audible alerts
• Programmable for up to 6 CAP codes
• Wireless data input
• Receives text messages from Tek-CARE and Tek-ALERT systems

Specifications

• Dimensions: 28 L × 6.75 H inches (711 mm × 171 mm)
• Weight: 8.4 lbs.
• Construction: LED display board with RF paging circuitry enclosed in a plastic housing
• Operating Frequency: 457.550 MHz
• Power Supply: Input 115 VAC

Required Component

NC365B Paging Transmitter

Applicable Systems

• Tek-ALERT Alert Integration Manager
• Tek-CARE 400 P5 Nurse Call System
• Tek-CARE 400 Nurse Call System
• Tek-CARE 500 Wireless Emergency Call System
• Tek-CARE 550 Wireless Nurse Call System

The LED message sign is an ancillary method of call annunciation and is not intended to replace the primary annunciation provided by the nurse call system.
