TekTone RY351B Hill-Rom® Side Com® Adapter, one required per bed

TekTone RY351B Hill-Rom SideCom Bed Integration

TekTone RY351B Hill-Rom® SideCom® Adapter is designed to work with IR311E, IR312E, IR319B, and IR320B patient stations and a Hill-Rom® SideCom® unit. When used with the compatible patient stations and Hill-Rom® SideCom® unit, the RY351B adapter provides the necessary circuitry for a Hill-Rom® SideCom® unit to control functions normally controlled by a pillow speaker. These functions include nurse call and patient communications.

Note: One RY351B SideCom® adapter is required per SideCom® unit.

Features

• UL® 1069 Listed
• Provides the following functions from a Hill-Rom® SideCom® Unit:
  • Call-placed indication
  • Monitor indication
  • Hands-free two-way communication
  • Nurse Call
• Supervised
• Ramp lock plug-in connectors

Listings

• UL® 1069 Listed: UL® File Number E71599

Specifications

Dimensions:

• Length: 4.25 inches (108 mm)
• Width: 2.00 inches (50.8 mm)
• Height: 1.25 inches (31.8 mm)

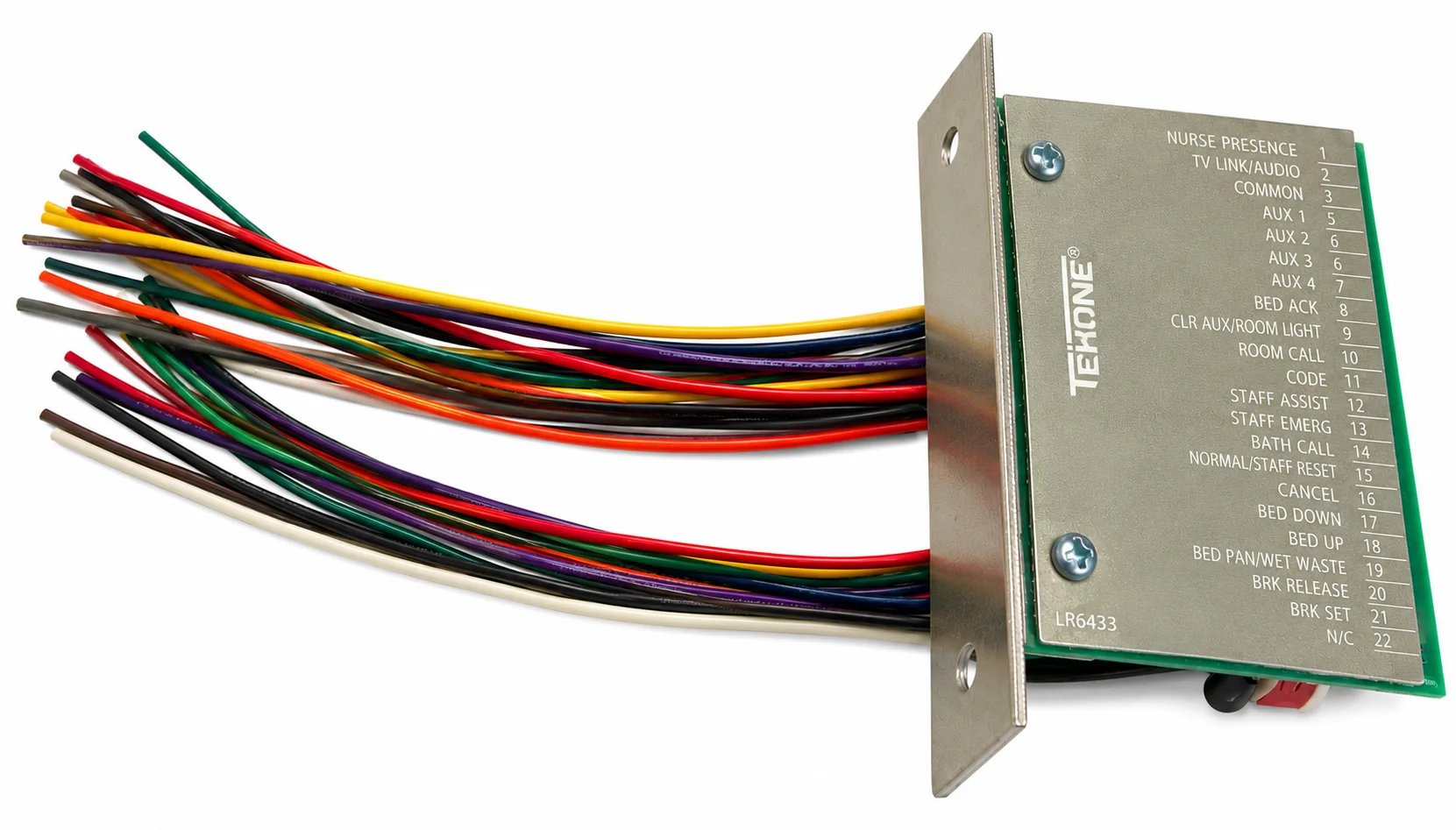

Construction: Circuit board mounted on a rugged aluminum mounting bracket.

Connections: Reliable ramp lock plug-ins.

Housing: Single-gang ring, or single-gang ring and double box, or exact equivalent.

Required Components

• Tek-CARE® 300II Nurse Call System
• JK401 Dummy Plug for IR319B or IR320B patient stations
