TekTone PM322B Pillow Speaker Light Control module for IR320B, IR312E

TekTone PM322B Patient Room Lighting Control

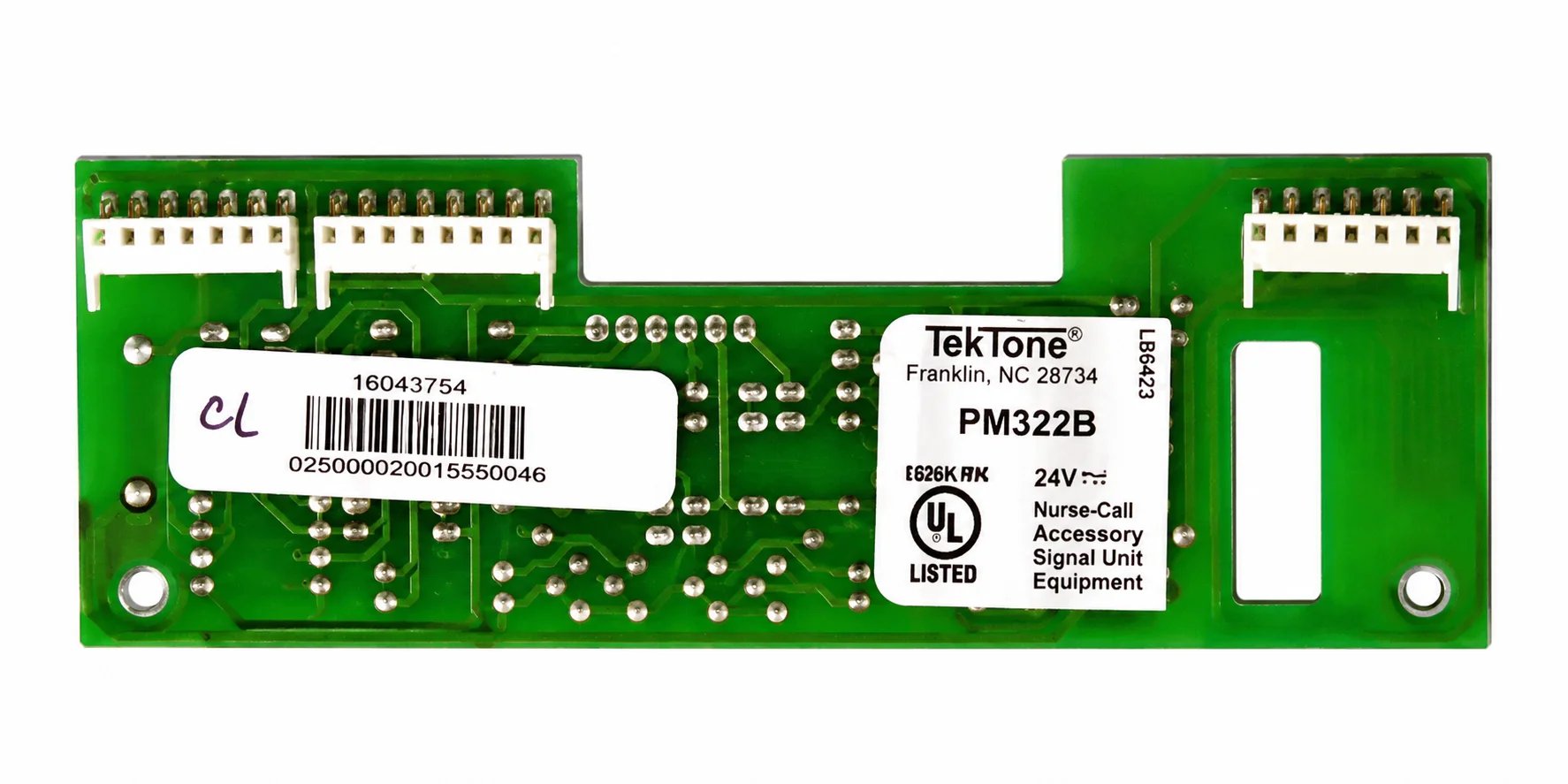

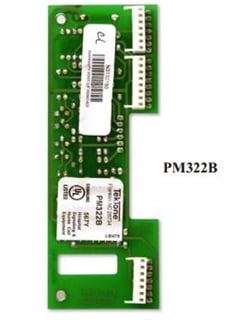

TekTone PM322B Pillow Speaker Light Control Module for IR320B and IR312E patient stations is designed for use with the Tek-CARE® 300III Nurse Call System and IR320B or IR312E patient stations with SF41ZKL or SF31ZDL pillow speakers. The module provides on/off control through the pillow speaker for two lamp sources, typically the overhead room lamp and a separate reading lamp. Circuitry for low-voltage lamp switching is provided by others. Turning the lamps on or off is accomplished by pressing the appropriate push buttons on the pillow speaker.

Features

• UL® 1069 Listed when used with IR319B, IR320B, IR311E, or IR312E patient stations.
• Provides on/off control of two lamp sources.
• Mounts directly to the patient station or pillow speaker intercom module, if used.

Technical Specifications

• Dimensions: 5"W × 1.625"D × 0.5"H (127 mm × 41 mm × 13 mm)
• Construction: PC board with quality electronic components
• Mounting: Plug-in connectors mounted to the patient station or to PM311C/PM312C, if used
• Wiring: Multiplex
• Listings: UL® 1069 Listed; UL® File Number E71599

Compatibility

Required Components:

• Tek-CARE® 300III Patient Stations
• IR320B Patient Station with SF41ZKL Pillow Speaker
• IR312E Patient Station with SF31ZDL Pillow Speaker

The lamp control module can be mounted directly to the patient station or to the station's PM311C or PM312C pillow speaker intercom module. Standard SF401-series or SF311-series call cords may be used without removing the modules.
