TekTone PK601A DC Power Supply for PK612A or DC Bells (BE007)

TekTone PK601A DC Power for Call Signaling

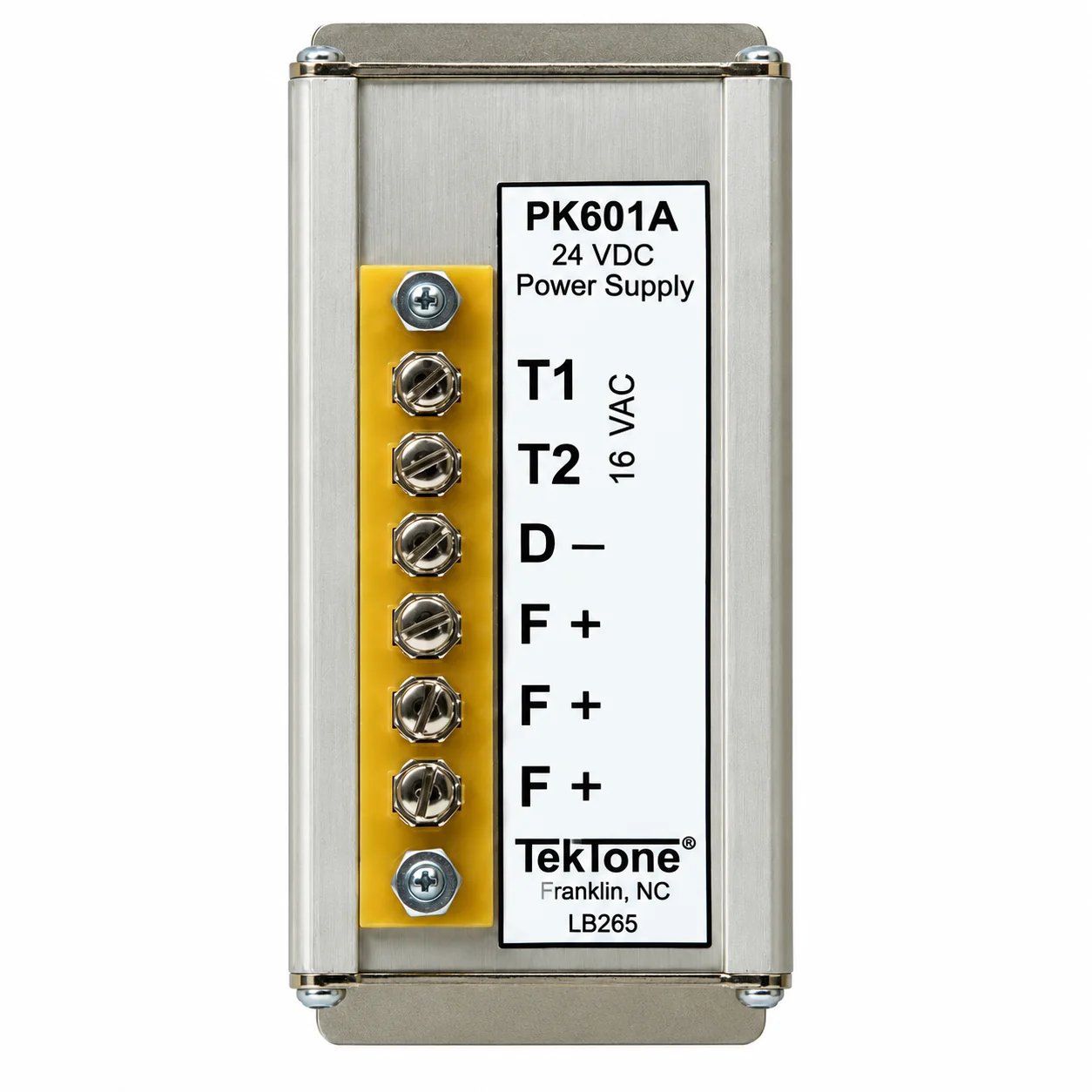

TekTone PK601A is a 24 VDC power supply designed to power auxiliary signaling devices used in TekTone emergency call systems. The unit provides a filtered 24 VDC output rated at 1 amp.

Although specifically designed for use with emergency call systems, the PK601A may also be used as a DC silent door opener adapter in TekTone apartment entrance systems.

Features

• Easy installation
• Low voltage operation
• Multiple applications
• Precision engineering

Technical Specifications

• Product Type: PK601A 24 VDC Power Supply
• Dimensions: 5"H × 2.37"W × 2.25"D (127 mm × 60 mm × 57 mm)
• Construction: Quality electronic components mounted on a PC board encased in a rugged extruded aluminum housing
• Connections: Screw terminals
• Mounting: Surface
• Output Voltage: 24 VDC
• Output Current: 1 Amp
• Power: 16 VAC, 30 VA

Compatibility

Suggested Uses:

• Tek-CARE®500 Wireless Nurse Call System
• NC50xES-series Remote Receiver
• LI381, LI382 or LI382LED Dome Lights
• CM800 Emergency Call System
• BE007 DC Corridor Bell
• PK612A Lamp Flasher
• Tek-ENTRY Apartment Entry System
• LI404B Strobe
• PK205 Intercom Amplifier
