TekTone PK124K Battery backup kit

TekTone PK124K Nurse Call Backup Power

TekTone PK124K Battery Backup Kit provides continuous battery charging so that, if power to the system equipment is interrupted, standby operating power is provided for up to approximately 6 hours. Backup time may vary depending on system size and usage.

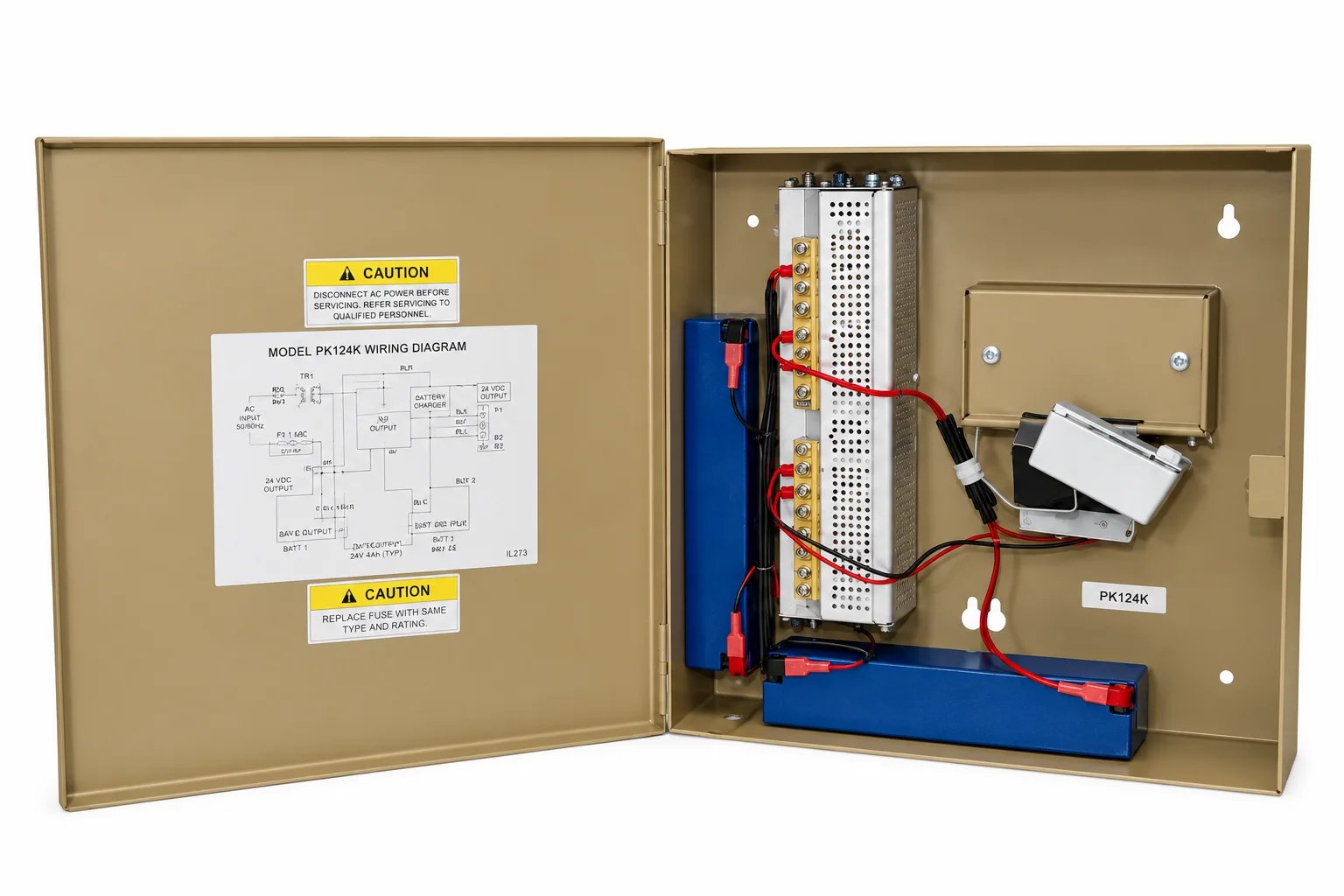

The PK124K kit includes a transformer, battery charger, and two batteries, all preinstalled in a 19-gauge cold-rolled steel housing. Knockouts are provided on all sides except the lid to allow electrical conduit connections from any direction. The lid also includes a knockout for installing an optional key lock. The enclosed single-gang electrical junction box is constructed of galvanized steel with a stainless steel cover plate.

TekTone systems supported by the PK124K include the DS100 Door Sentry & Emergency Alarm System, CM800 Emergency Call System, Tek-ENTRY® Apartment Entry Systems, and Tek-SAFE® Area of Rescue Assistance System.

Features

• Low-voltage operation
• Reliable alternate power supply
• Integrated circuit design
• Easy installation

Specifications

• Dimensions: 11.75"W × 11.75"H × 3.75"D (300 mm × 300 mm × 96 mm)
• Connections: Screw terminals (on PK124)
• Construction: 19-gauge cold-rolled steel
• Transformer: 24 VAC, 30 VA (SS106)
• Storage: Two 12 VDC batteries (BA001)
• Mounting: Surface

Required Components

• CM800 Emergency Call System
• DS100 Door Sentry & Emergency Alarm System
• Tek-ENTRY® Apartment Entry Systems
• Tek-SAFE® Area of Rescue Assistance System

Optional Components

• Mier BW3000 Offset Cam Lock, or equivalent
