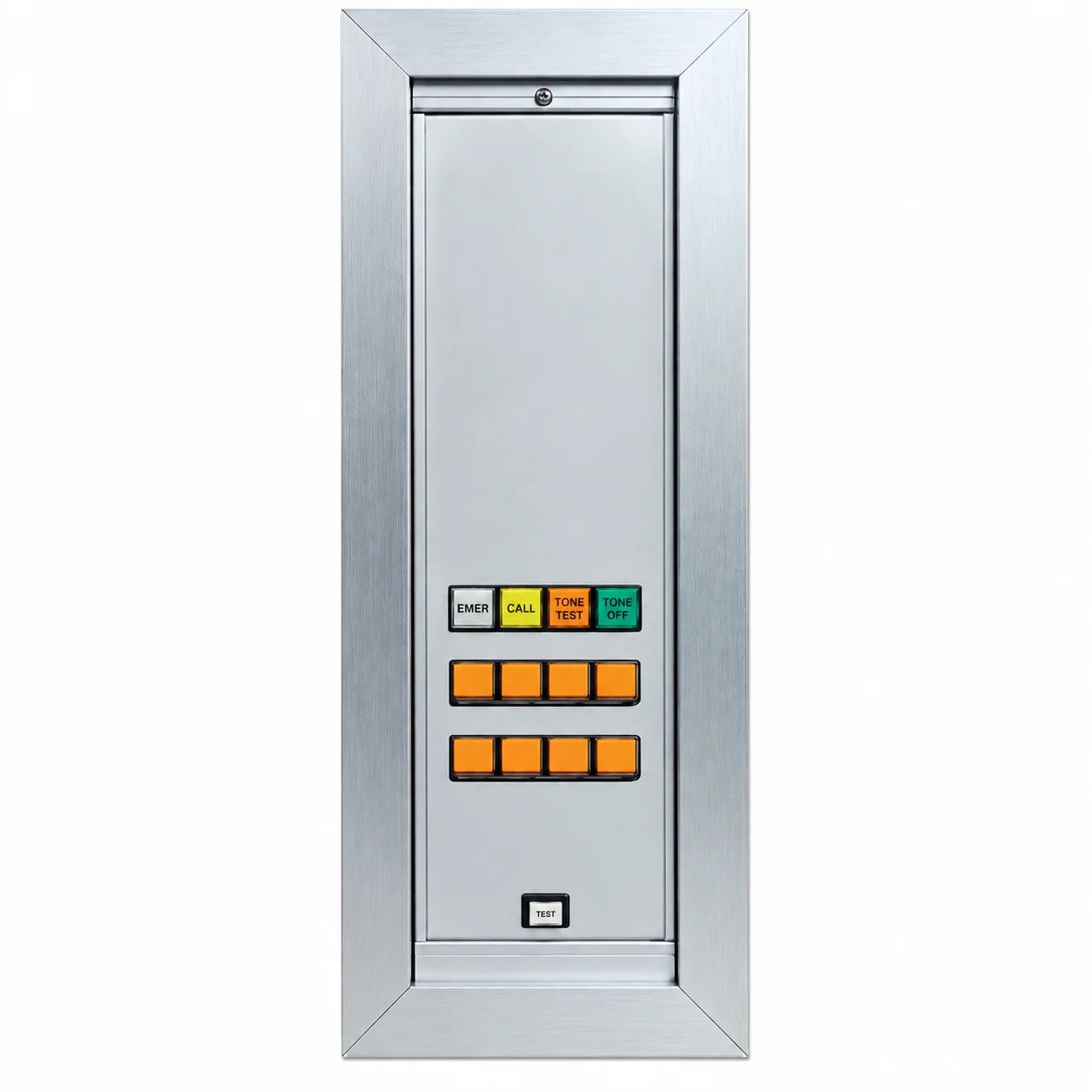

TekTone NC110/8 Master Panel with 8 lights, test button

TekTone NC110/8 8-Point Visual Call Monitoring

TekTone NC110/8 Master Panel is part of the Tek-CARE® NC110 Series Audible-Visual Nurse Call System. It provides audible and visual call indication without the use of intercom communication. The basic system consists of a master annunciator/control panel, room call stations, emergency call stations, dome lights, zone lights, a control unit, and power supply equipment.

Features

• 8 station indicator lights and control panel zones
• Electronic DC buzzer
• Tone Off and Tone Test functions
• Emergency and routine call signaling
• Modular design
• Protected markings

Technical Specifications

• Number of Zones Supported: 8
• Construction Material: Extruded aluminum
• Form Factor / Mounting: Desk mount, flush mount, or surface wall mount
• Dimensions: Not specified by TekTone
• Connections: Not specified by TekTone

Compatibility

• TekTone® Tek-CARE® NC110 Series Nurse Call System
• IH151NK Power & Control Kit
• SS106 Transformer
• PK153 Third Priority Control Unit
• SF100C, SF101C, and SF102 Room Stations
• SF155B Emergency Station and SF156B Code Station
• LI381 / LI382LED Corridor Lights
