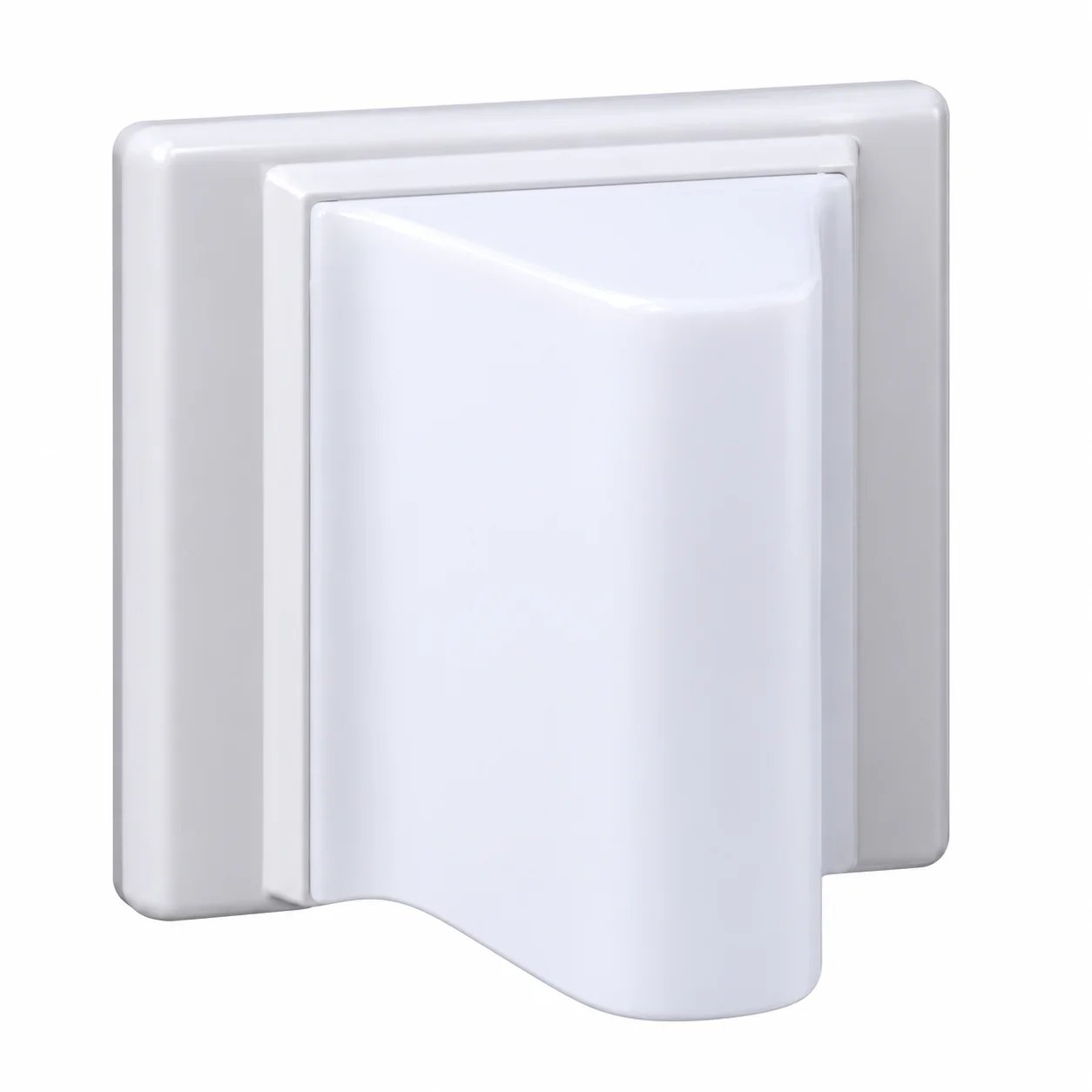

TekTone LI123B Dome light / AC Buzzer, 106 dB at 3′, 2 gang plastic panel

TekTone LI123B Audible and Visual Call Signaling

TekTone LI123B Corridor Light provides both visual and audible indication of any type of call. Models may be used with an emergency call system or in any application where this type of call indication is needed.

The standard mounting plate accommodates both models and features an easily removable white translucent cover for bulb replacement.

Features

• Excellent visibility.
• Audible call indication.
• Easy bulb replacement.
• Durable construction.

Technical Specifications

• Product Type: LI123B Corridor Light.
• Dimensions: 5"H × 6.75"W × 4.5"D (127 mm × 171 mm × 117 mm).
• Bulb: Type 1829, 28V, min. BAY.
• AC Buzzer: Type 123A-G5, 24 VAC, 160 mA.
• DC Buzzer: Type 118-G1, 24 VDC, 40 mA.
• Power: LI123B: 24 VAC, 200 mA.
• Finish: Translucent white plastic cover mounted on a flame retardant (UL 94V-0) plastic panel.
• Mounting: Fits standard dual-gang box and ring. Minimum depth of box must be no less than 1.75".
• Construction: The LI118B and LI123B Corridor Lights are single-bulb dome lights constructed on a 2-gang plastic base.
• Audible Output: 106 dB at 3′.

Compatibility

• Required Component: CM800 Emergency Call System.
• The LI118B and LI123B dome lights provide call indication and annunciation when used with SF-series emergency switches.
