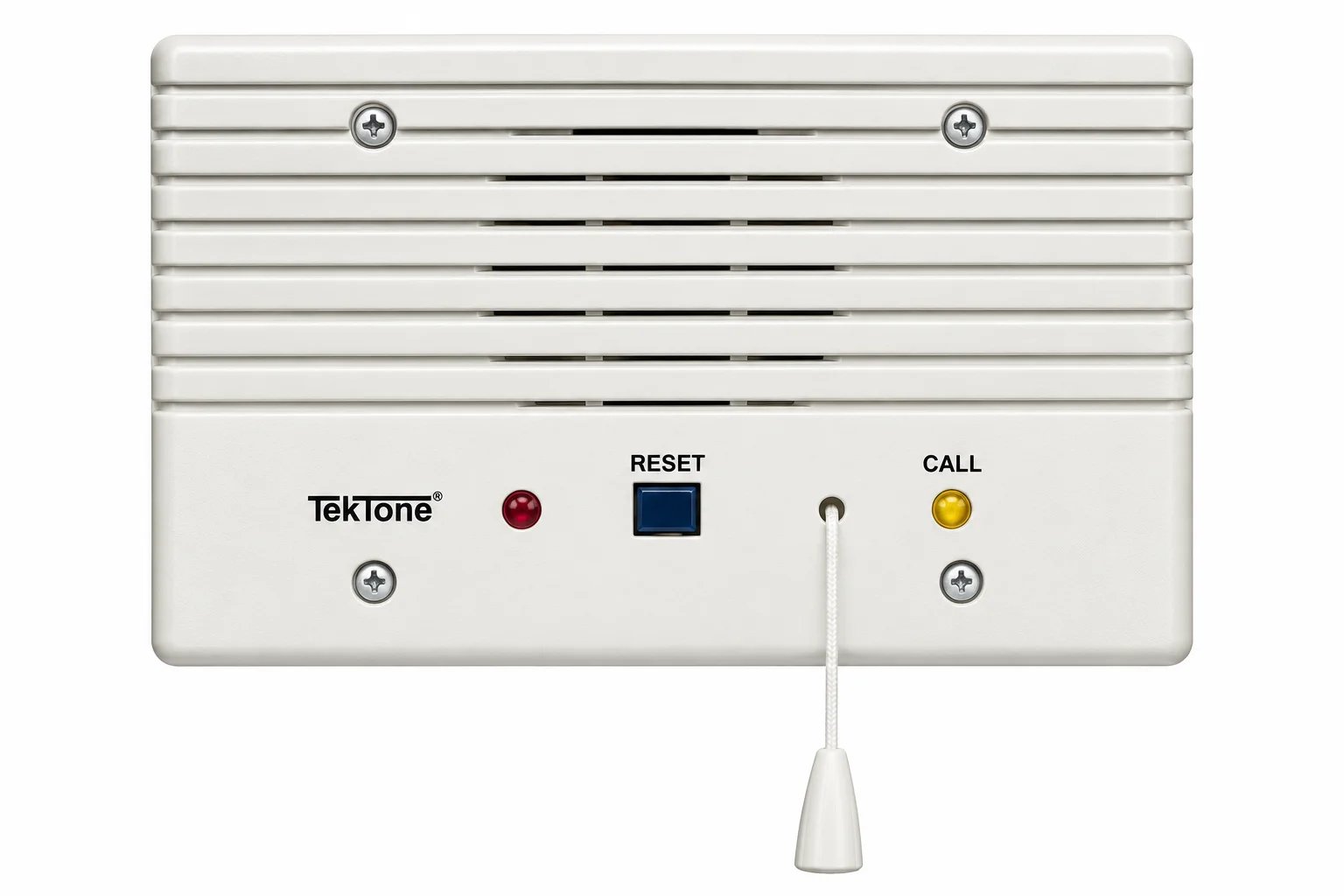

TekTone IR155B Patient Pull-Cord Call Station
TekTone IR155B Single Patient Station provides efficient use of nursing staff by permitting fast, reliable communication between staff and patients. The patient can call the nurse by pulling the 6' call cord. Call-placed assurance and intercom operation are indicated by solid-state LEDs. The speaker/microphone is sensitive enough to provide clear conversation, even for weak patients. A reset switch is provided on the durable, flame-retardant (UL® 94V-0) plastic panel.
Features
- Place calls using a 6' washable TPU plastic pull cord
- Call-placed indicator
- In-use indicator when the intercom audio path is active
- Reset button
- Sensitive speaker/microphone
- Durable, flame-retardant (UL® 94V-0) plastic panel
- May be used as a retrofit for the IR155N station with the IH106N backbox; requires two CL207 mounting adapters
Technical Specifications
- Dimensions: 4.5"H × 6.375"W × 2.375"D (114 mm × 162 mm × 60 mm)
- Construction: Flame-retardant (UL® 94V-0) plastic
- Speaker: 2.5" × 2.5"
- Connections: Plug-in type
- Housing: Steel City #H3BD with Steel City #3GC plaster ring, or TekTone #IH353 box with IH352 ring, or equal. If a smaller box is needed, use ARC-CO #2GB with ARC-CO #3GC ring. Horizontal mount.
Listings
- UL 1069 Listed; UL® File Number E71599
Compatibility
- TekTone® Tek-CARE® NC150 Nurse Call System
- TekTone® Tek-CARE® NC200 Nurse Call System
SKU IR155B UPC 8.12664E+11 Condition New Manufacturer Tektone
