TekTone IR152B Dual Patient Station

TekTone IR152B Dual-Station Call Access

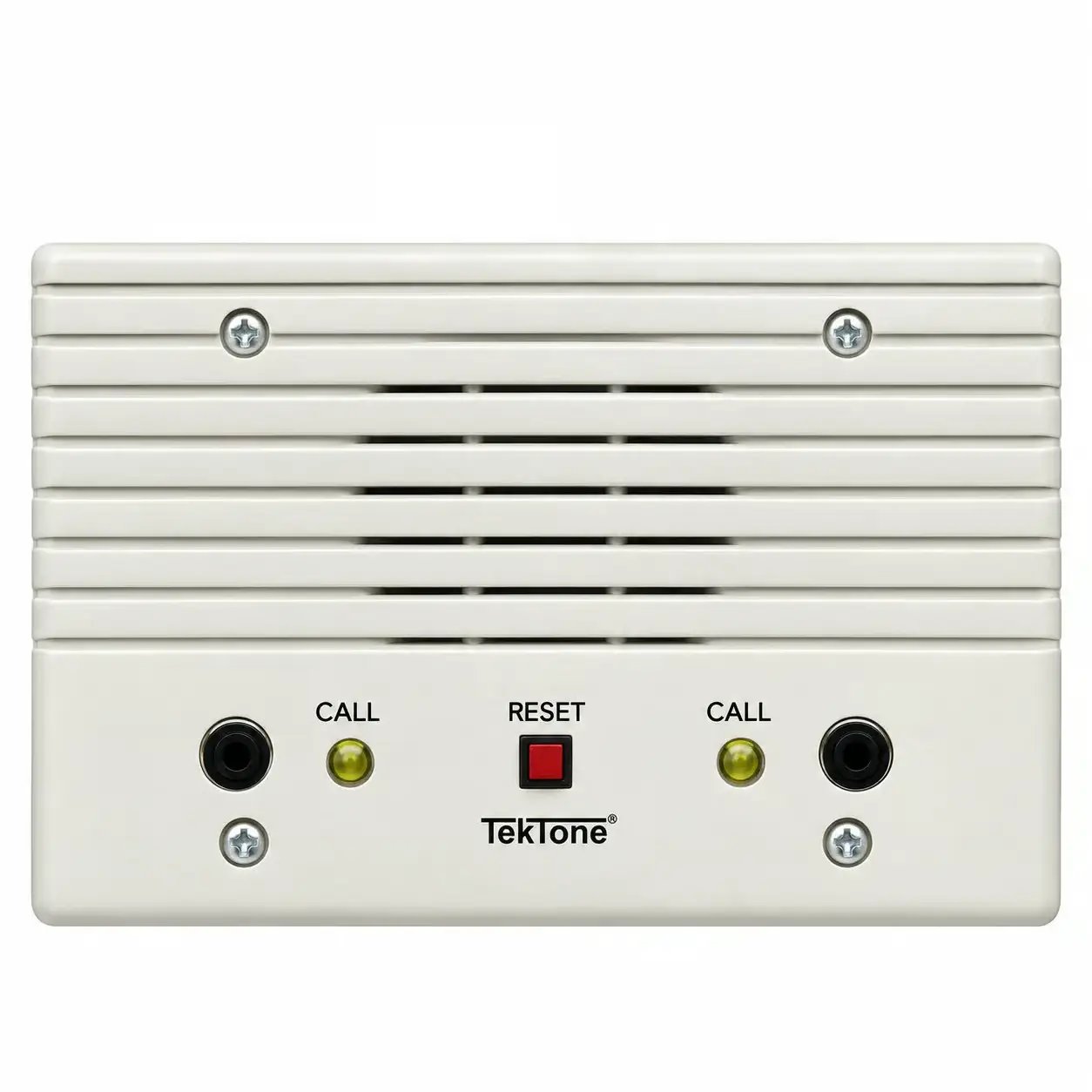

TekTone IR152B Dual Patient Station provides efficient use of nursing staff by permitting fast, reliable communication between staff and patients. Patients can call the nurse by pressing the call button on the end of a 6′ or 10′ long call cord. A non-resettable call is registered if a call cord is accidentally removed from its jack. Call-placed assurance and intercom operation are indicated by solid-state LEDs. The speaker/microphone is sensitive enough to provide clear conversation, even for weak patients. A reset button is provided on the durable, flame-retardant (UL® 94V-0) plastic panel.

Features

• Push-button calling
• Call-placed indicator
• In-use indicator when the intercom audio path is active
• Reset button
• Sensitive speaker/microphone
• Durable, flame-retardant (UL® 94V-0) plastic panel
• Dual call cord jacks to accommodate two patients
• May be used as a retrofit for the IR152N station with the IH106N backbox; requires two CL207 mounting adapters

Technical Specifications

• Dimensions: 4.5"H × 6.375"W × 2.375"D (114 mm × 162 mm × 60 mm)
• Construction: Flame-retardant (UL® 94V-0) plastic
• Speaker: 2.5" × 2.5"
• Connections: Plug-in type
• Housing: Steel City #H3BD with Steel City #3GC plaster ring, or TekTone #IH353 box with IH352 ring, or equal. If a smaller box is needed, use ARC-CO #2GB with ARC-CO #3GC ring. Horizontal mount.

Compatibility

• TekTone® Tek-CARE® NC150 Nurse Call System
• TekTone® Tek-CARE® NC200 Nurse Call System
• SF301 or SF301/10 Call Cord
