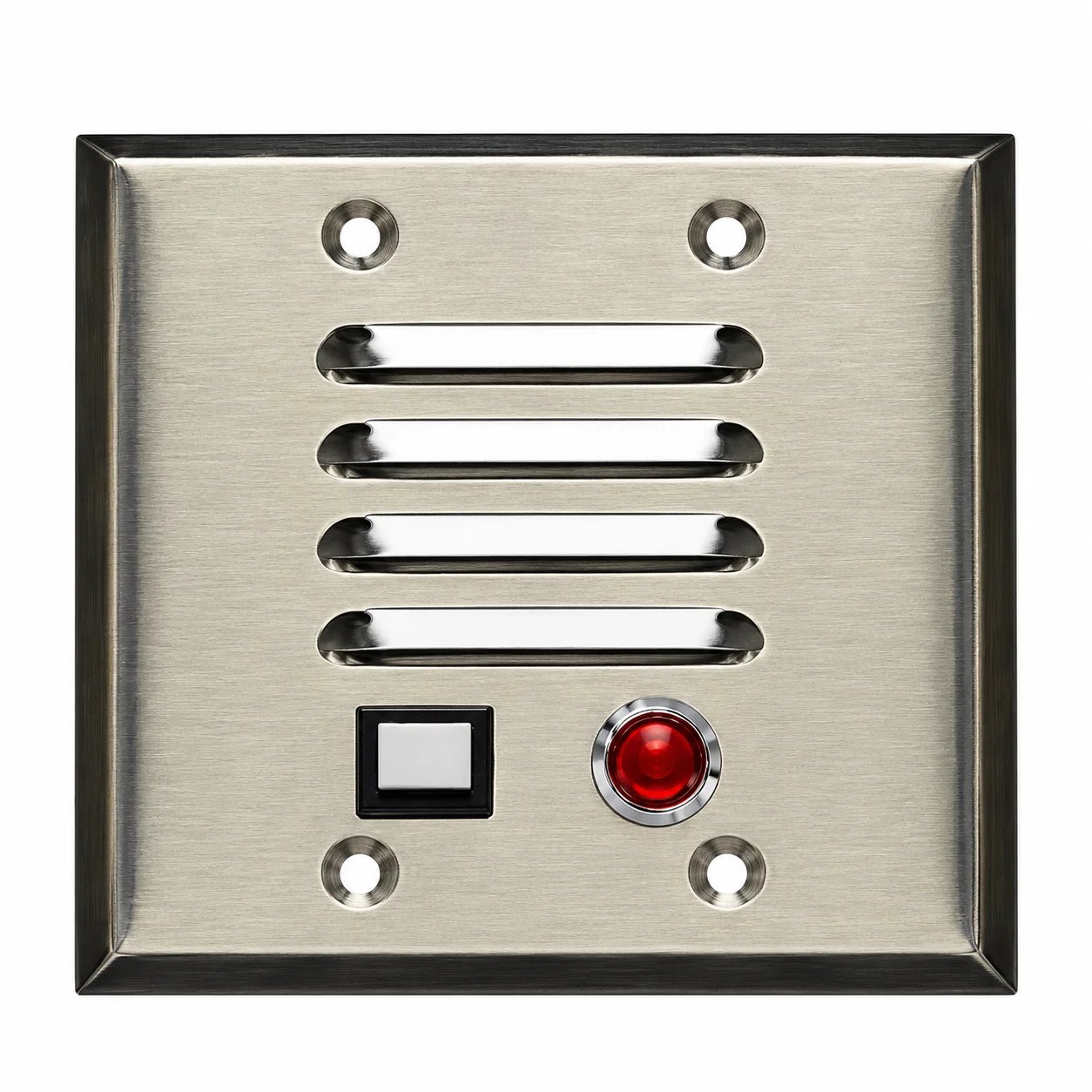

TekTone IR019B Remote Tone Speaker, tone off button/light, 2 gang

TekTone IR019B Remote Audible Nurse Call Signaling

TekTone IR019B Remote Tone Speaker provides remote tone annunciation when connected directly to a PK2019A Power and Control Unit, and in parallel with a TekTone® CM800-series or DS100-series Annunciator Panel.

The tone speaker features a momentary contact Tone Off button for tone silencing. Depressing the Tone Off button silences the tone at all IR019B locations. The Tone Off light remains illuminated while tone-silencing is enabled. When the emergency initiating device has been reset, the Tone Off will automatically reset.

Features

• Automatic Tone Off reset
• Reliable and rugged design
• Momentary contact Tone Off button for tone silencing
• Tone Off light remains illuminated while tone-silencing is enabled

Technical Specifications

• Dimensions: 4.5"H × 4.5"W (115 mm × 115 mm)
• Finish: Satin brushed stainless steel
• Controls: Individual replaceable push button with self-wiping contacts
• Indicators: 28 volt red light
• Speaker/Mic: 45 ohms, 2.5"
• Connections: Pigtails
• Housing: Standard dual-gang electrical box

Compatibility

• CM800 Emergency Call System
• DS100 Door Sentry & Emergency Alarm System
• PK2019A Power and Control Unit
• SS106 Transformer
