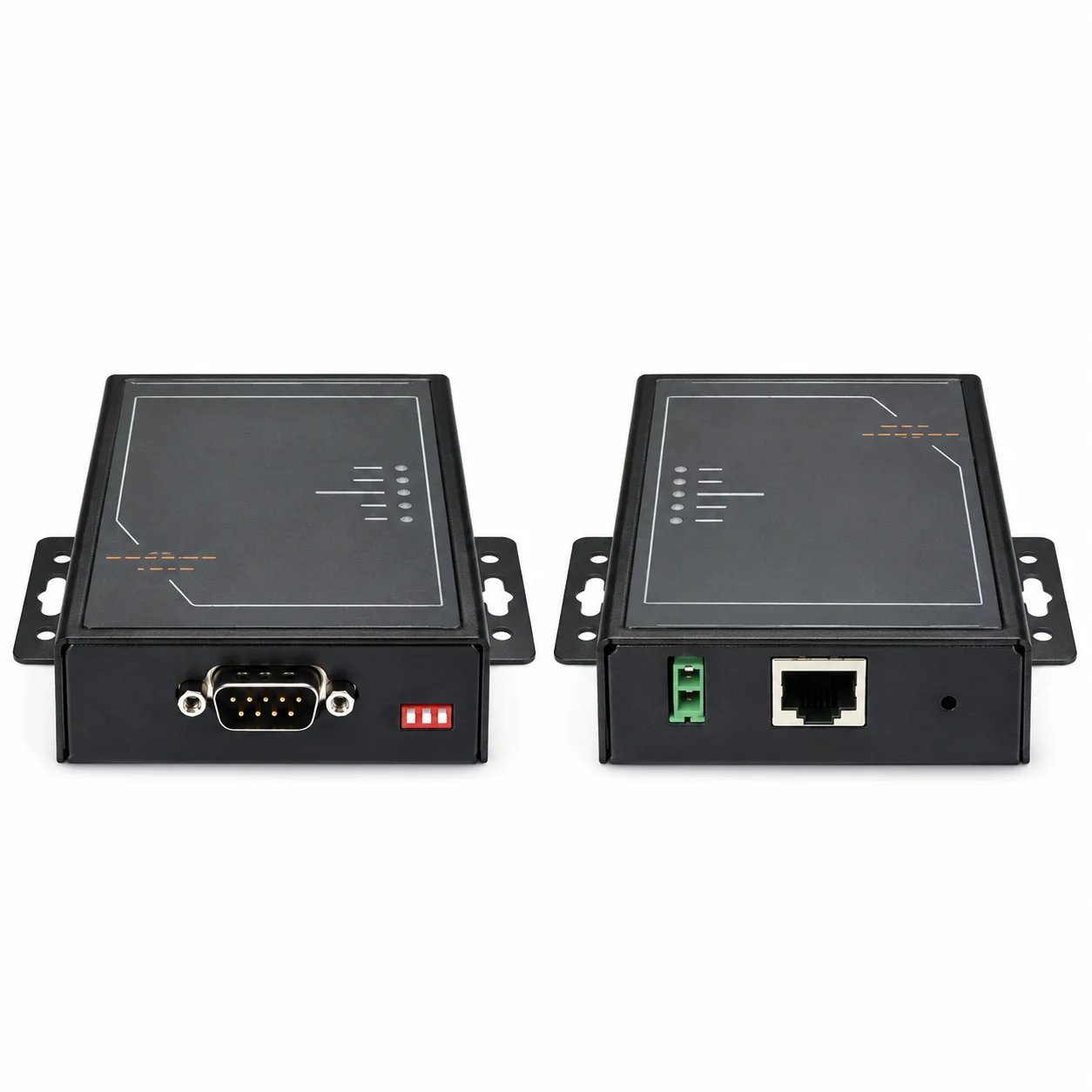

TekTone CT601 Serial to IP Converter

TekTone CT601 Nurse Call Network Conversion

TekTone CT601 Serial to IP Converter is used to connect a Tek-CARE® 300/II/III Nurse Call System or a monitored third-party system to a facility's LAN. Events and messages from the connected system are sent across the LAN to the NC475 Tek-CARE® Appliance Server.

The CT601 Serial to IP Converter becomes a virtual COM port on the NC475 Tek-CARE® Appliance Server and provides long-distance communication between the server and the monitored serial device. The CT601 eliminates the otherwise expensive long-distance cabling required for these connections.

Configuring the CT601 is accomplished using software provided with the device. The unit can be wall- or DIN-rail mounted and incorporates surge protection.

Features

• Eliminates expensive long-distance cabling
• Becomes a virtual COM port on the NC475 Tek-CARE® Appliance Server
• Can be wall- or DIN-rail mounted
• Incorporates surge protection

Required Components

NC475 Tek-CARE® Appliance Server with nurse call system license, event monitor software, and reporting software.

Specifications

• Dimensions: 3.9 H × 2.8 W × 1.0 D inches (100 mm × 72 mm × 25 mm)
• Serial Port: Male DB9 serial port, 1200 bps to 115 Kbps, hardware flow control
• RS232 Signals: Rx, Tx, RTS, CTS, DTR, DSR, GND, DCD
• Network Port: 10Base-T Ethernet
• Protocols: ARP, IP/ICMP, TCP/IP, Telnet, DHCP client, DNS
• Security: User ID & Password, IP address filtering
• Power: 7.5–15 VDC, 300 mA at 7.5 V
• Environment: 90% non-condensing humidity; 0°C–50°C operating temperature
• Certification: FCC (A), CE, MIC
