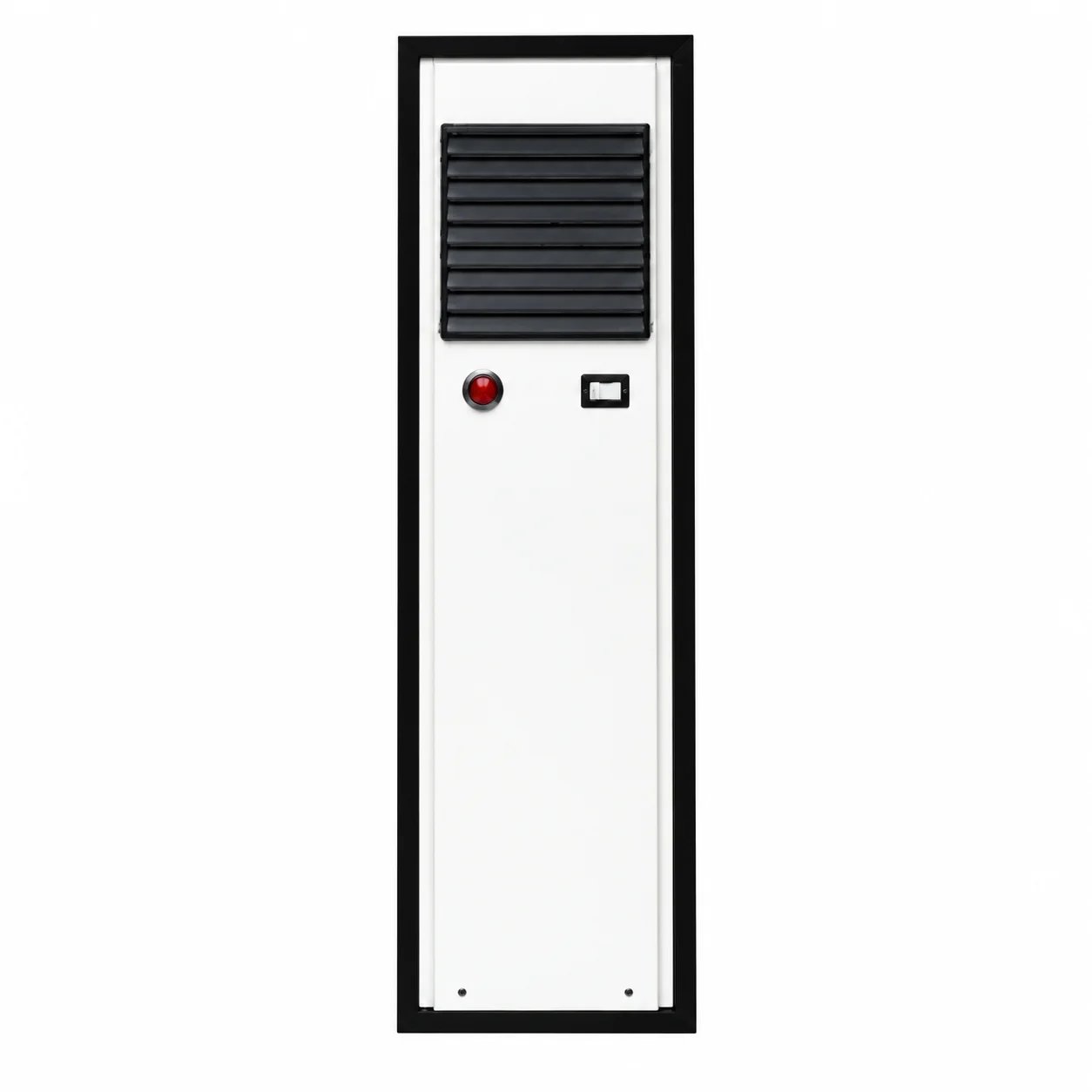

TekTone CM800 Speaker Panel with tone-off button/light, test button

TekTone CM800 Audible and Visual Call Monitoring

TekTone CM800 Speaker Panel is part of the CM800 Emergency Call System, a modular annunciator system used for emergency call, security alarm, and equipment monitoring applications. TekTone's CM800 documentation shows the speaker panel with annunciator lamps, a tone-off button and lamp, and a test button.

Features

• Tone speaker for audible call annunciation.
• Tone-off button for silencing the audible call signal.
• Tone-off lamp that illuminates when the tone is silenced.
• Test button for checking the annunciator lamps on the panel.
• Emergency calls are indicated by the associated station selector lamp and a rapidly pulsating audible tone.

Technical Specifications

• Product Type: CM800 Speaker Panel
• Speaker: 45 ohm
• Tone-Off: Button and indicator lamp
• Test Function: One lamp test button is provided on each panel of annunciator lamps; when pressed, all annunciator lamps on that panel should illuminate.

Additional model-specific electrical, physical, dimensional, or performance specifications for the CM800 Speaker Panel are not specified by TekTone.

Compatibility

The CM800 Speaker Panel is used as part of the TekTone CM800 Emergency Call System. TekTone's CM800 documentation shows the speaker panel used with the following system components:

• PK2019 or PK2019A Power and Control Unit
• SS106 Transformer
• CM800 Annunciator Lamps
• CM800 emergency call stations and compatible corridor lights, depending on the system configuration.
