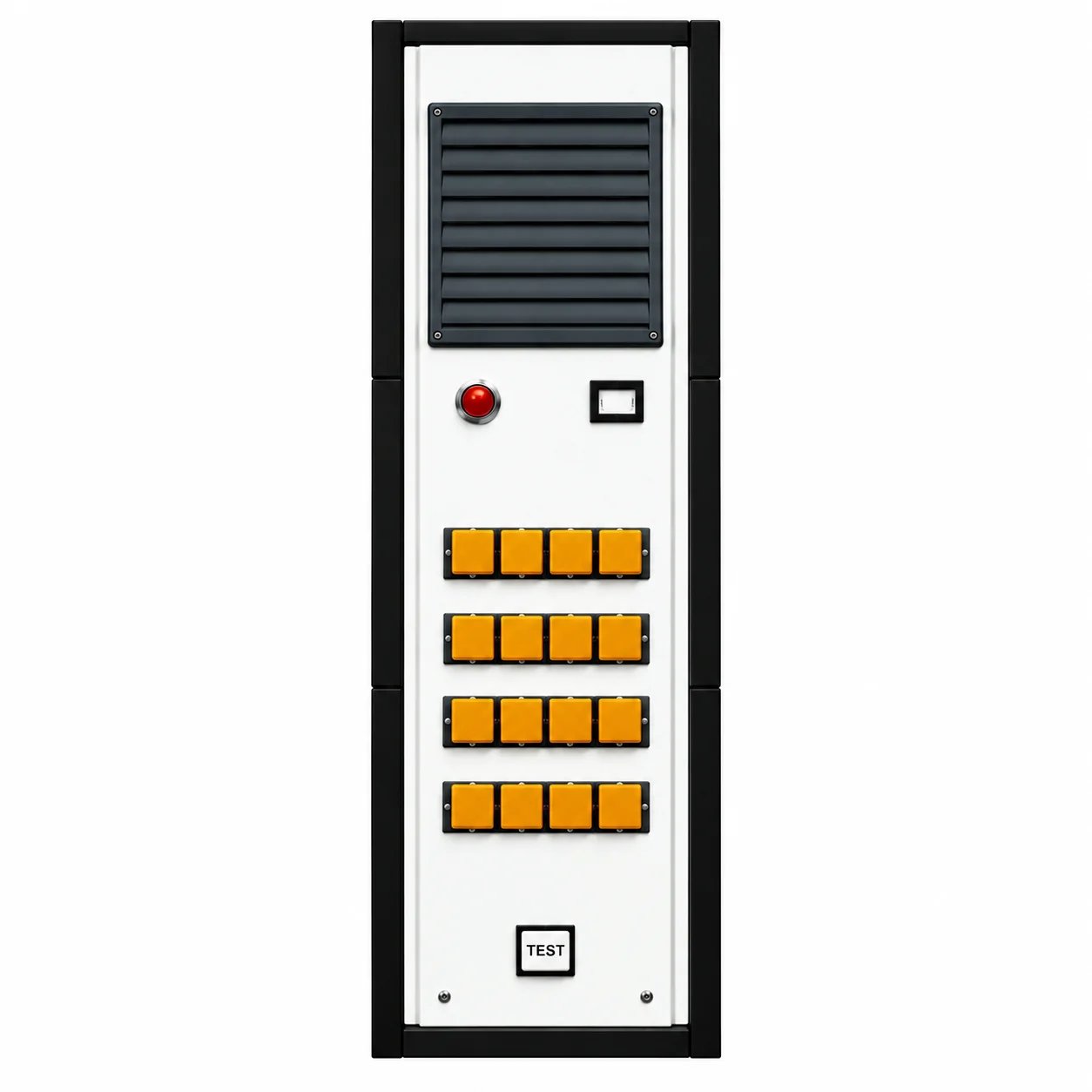

TekTone CM800/16 Speaker Panel with 16 lights, tone-off button/light, test button

SKU
CM80016
$1,251.33
$1,251.33 To see product price, add this item to your cart. You can always remove it later. What's this?

TekTone Nurse Call System Parts		Wireless_Nurse_Call_110t

Proud to be a TekTone Elite Partner

Compare Wired vs Wireless Nurse Call


View All TekTone Nurse Call Systems

OR
  • INFO
  • SPECS
  • RELATED

  • TekTone CM800/16 16-Zone Call Monitoring

    TekTone CM800/16 Speaker Panel is part of the CM800 Emergency Call System. The CM800-series Annunciators are modular panels used in systems requiring 16 to 344 annunciator lamps. TekTone states that the CM800 is suitable for emergency call, security alarm, services monitoring, and similar applications where visual and audible annunciation is required. The annunciators can be used as remote extensions for other systems or as part of a stand-alone emergency call system.

    TekTone CM80016 Specification Sheet All TekTone Product Specification Sheets

    Features

    • Modular design.
    • Protected markings.
    • Multiple use.
    • Up to 4 digits per lamp.
    • Vertical or horizontal mounting.
    • Identification markings can be applied by dry transfer letter method or label maker.
    • 16 indicator lamps are within the CM800 configuration range specified by TekTone.
    • Lamps are available only in multiples of four.

    Technical Specifications

    • Product Type: CM800-series Annunciator / Speaker Panel
    • Model: CM800/16
    • Number of Indicator Lamps: 16
    • Power Required: 16 to 24 VAC or VDC
    • Connections: Screw terminals
    • Housing: Flush mounting, OH200
    • Lamp Configuration: Lamps available only in multiples of four.
    • Housing Wall Cut-Out Height: 16-1/4"
    • Housing Wall Cut-Out Depth: 3-7/8"
    • Overall Frame Height: 17-3/4"
    • Overall Frame Depth: 2-1/2"
    • Specific Dimensions for the CM800/16 Speaker Panel Itself: Not specified by TekTone
    • Specific Speaker Electrical Specification for the CM800/16: Not specified by TekTone

    Compatibility

    The CM800/16 is part of the TekTone CM800 Emergency Call System. TekTone lists the following required components for the CM800 system:

    • CM800-series Speaker Panel
    • AM800-series Add-On Panel
    • PK2019A Power & Control Unit
    • SS106 Transformer
    • SF117/2C and SF117/4C Emergency Call Switches
    • SF118/2C and SF118/4C Emergency Call Stations
    • SF154B Emergency Call Switch
    • LI381 Corridor Light
    • LI382/LI382LED Corridor Lights
    • LI118B and LI123B Corridor Lights
    • BE005/BE007 Corridor Bells
