TekTone AM190/12 Apartment Intercom System Panel

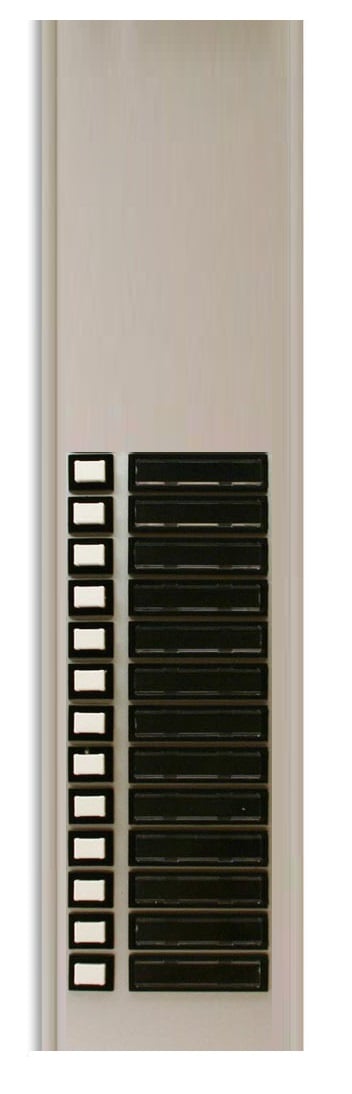

TekTone AM190/12 12 Button Apartment Intercom System Panel

Description
AM190/12 and AM190/22 Push Button Add-On Panels are specifically designed for use with TekTone®’s AM192- and AM193-series speaker panels. For entrance panels that require contact with more than 18 apartments, an AM190/12 or AM190/22 is required. The specific model depends upon the number of additional apartments to be called.

Features
• Modular design
• Individually replaceable name holders (black flame
retardant polycarbonate plastic)
• Easily accessible
• Simple installation

Specifications
Dimensions: Height: 16.5″ (375 mm)
Width: 4″ each panel (100 mm)
Push Buttons: Individually replaceable type with selfwiping contacts.
Construction: Modular, extruded anodized aluminum panel.
Mounting: OH190 series housing for flush mounting.
OF190S series frame for surface mounting.
