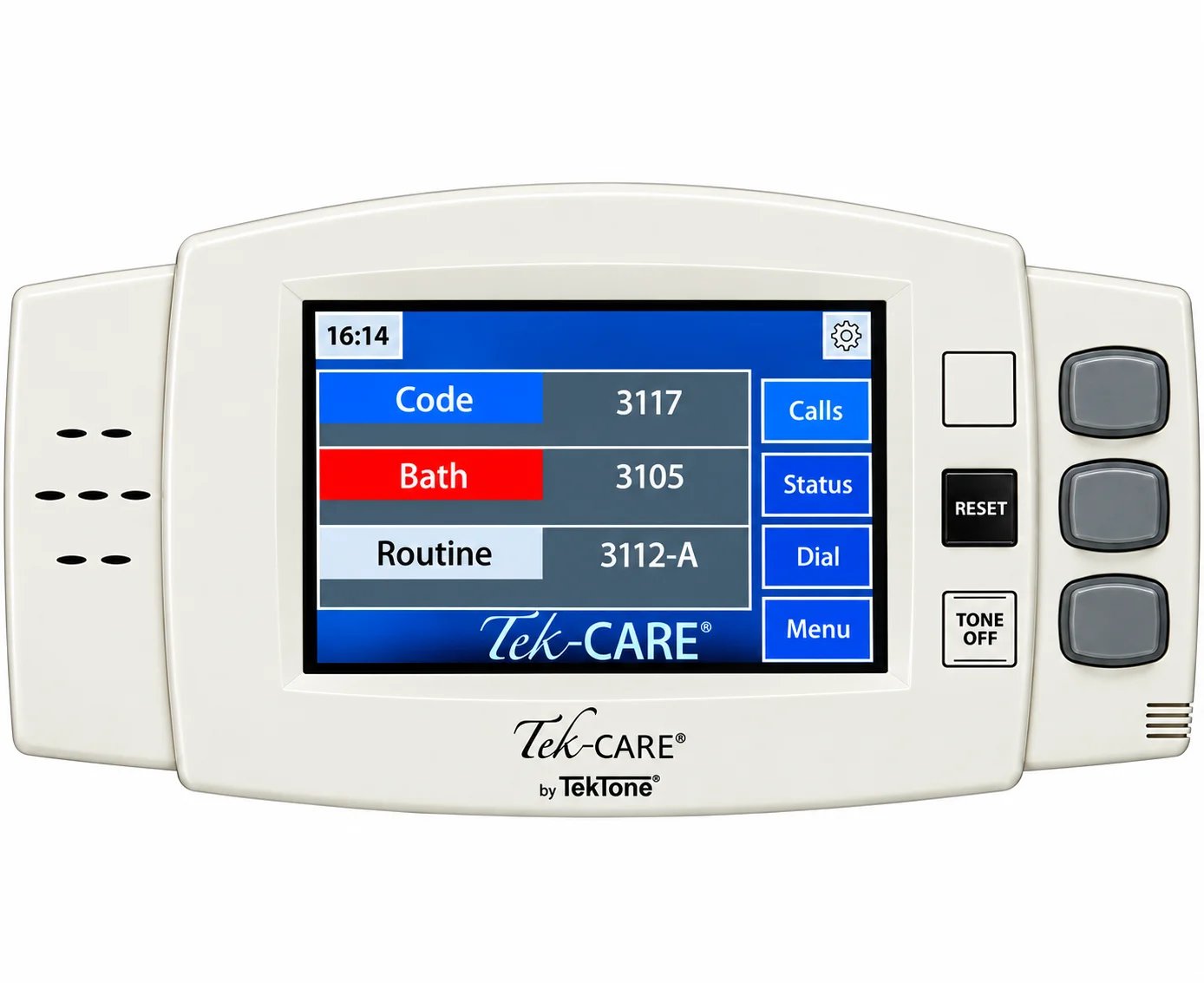

NC415G3 Master Station | Tek-CARE 120 / 160 Nurse Call System

NC415G3 Master Station | Tek-CARE 120 / 160 Nurse Call System

The NC415G3 provides for tone and visual annunciation of calls from stations and other masters and for push to talk audio control for audio capable systems. If desired, add the optional TA415L handset kit for better privacy. The kit comes with a cradle, handset, and cord.

The user interface layout is the same as other TekTone product displays including the NC404TS, NC403TS, and Tek-CARE Apps, allowing staff to view calls on the same familiar screen across devices. Up to three incoming calls are displayed by priority and time and are also color coded for easy recognition. Routine calls are annunciated with a steady call LED and slow pulsing tone with station number displayed on the touchscreen. Calls can be selected out of order.

High priority calls are annunciated with a rapid flashing call LED and rapid pulsing tone with the station number displayed on the touchscreen. All calls have to be canceled from the point of origin unless it is a routine call from an audio capable station whereupon resetting an audio connection can reset the call if desired. For additional annunciation at the master location, an LI484P5 4LED multicolored dome light can be connected directly to the master station. This dome will annunciate the highest priority call on the NC415G3. .

Key Features:

• Compact Nurse Call Console which can be desk or wall mounted
• Optional handset and cradle for added privacy during audio communication
• Can be used with all TekTone Nurse Call Systems
• Color LCD display for easy viewing of color coded call types
• Displays up to 3 calls with scrolling feature
• Displays changes when call is selected providing more pertinent information

Specifications:

• Dimensions: NC415G3: 4.75"H × 9.60"W × 1.3"D (121 mm × 244 mm × 33 mm) from wall (flush-mounted)
• TA415L: 6.97"H × 1.49"W × 1.3"D (177 mm × 38 mm ×33mm)Handset
• Input Power: 24 VDC, NC435G3 27 VDC, NC455CE
• Construction: PC board with quality electronic components
• Housing: IH415LD for desk mount; IH415W plus standard dual-gang box with dual-gang ring for wall mount
• Connections:  8P8C modular plug and jack
• Required Components: NC475 Tek-CARE Appliance Server, TekTone Tek-CARE Nurse Call Systems
• One of the following: IH415LD Desk Mount Housing , IH415W Wall Mount Bracket
• Optional Components: TA415L Handset , LI484P5 Four-LED Corridor Light
