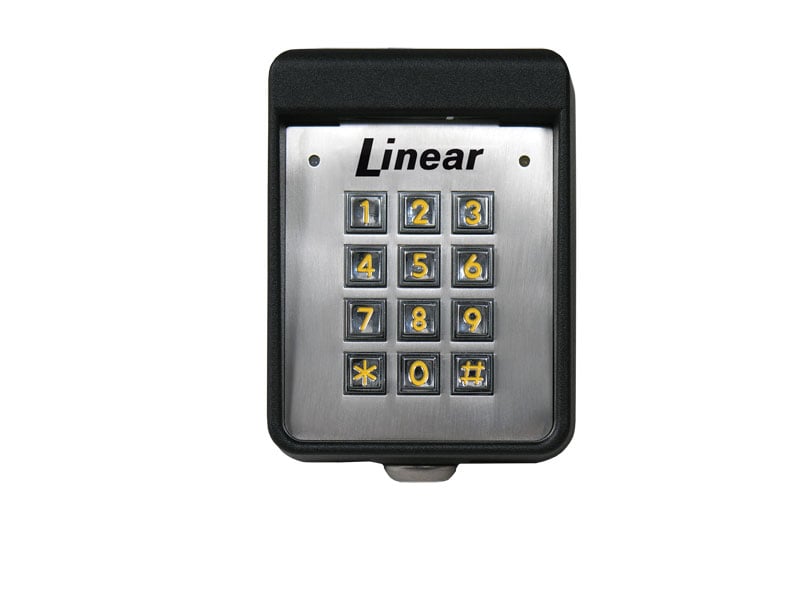

Linear AK-11 Digital Access Keypad - Stand-Alone Security Entry

Linear AK-11 Keypad – Digital Access Control Features

Linear AK-11 Digital Access Keypad is a self-contained keyless entry system ideal for airports, hospitals, warehouses, office buildings, parking lots, and many other commercial facilities.Rugged, cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal.

Features:

• Four independent outputs and timers
• Two form C relays and two solid-state open collector outputs
• Unique programming per entry code
• Up to 480 programmable input codes of one to six digits with each code activating either or both relays
• Two LED indicators show system status
• Door sense input
• Inhibit input
• Request-to-exit input
• Alarm shunt output
• Timed anti-passback
• Keypad lockout
• Programmable courtesy light illuminates keypad for 1, 2, 3, or 4 minutes
• Tactile and audible feedback
• Keylock secures keypad to mounting backplate
• Dimensions 4″ W x 5.5″ H x 3″ D

We offer a complete range of Linear access control and security solutions, including full access control systems, keypads, proximity readers, access credentials, automation radio controls, garage door openers, gate operators, and more. Whether you need a new system or replacement parts, we provide the full line of Linear products to meet your security and access control needs.
