Tektone Tek-CARE IR160 Audio Station for Tek-CARE 160

The IR160 Audio Station is designed to be installed in a resident living area where two-way audio communication is required.

Up to four IR160s may be associated with a single station ID using the LS450 Config Tool software.

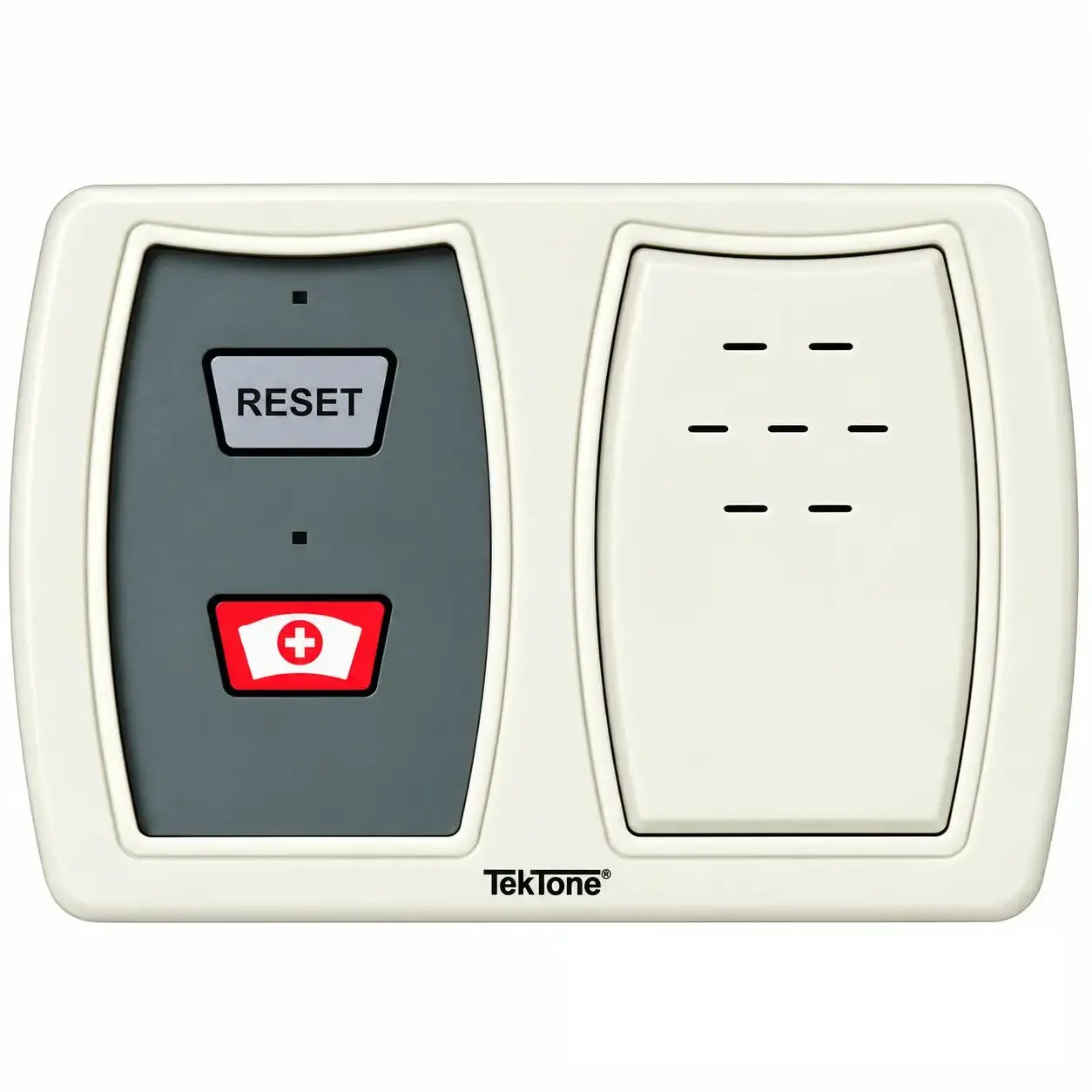

Mount the station using an IH121K Single-Gang Mounting Kit, or mount an IR160 Audio Station and a call-placement station together using an IH122K Dual-Gang Mounting Kit. The station snaps into the kit’s plastic bezel and then onto the kit’s surface mounting plate, leaving no visible screw holes.

Features

• Provides two-way audio into resident rooms.
• LED illuminates when an audio connection is open.
• UL/cUL®1069 and UL®2560 Listed.
• RoHS Compliant.

Specifications

• Dimensions: 4.58"H × 6.74"W × 1.03"D (116 mm ×171 mm × 26 mm)
• Environment: 0°C–60°C
• Construction: PC board with quality electronic components mounted on a flame-retardant (UL® 94V-0) plastic faceplate.
• Mounting: Attach included back plate to a standard single-gang ring or single-gang ring and box.
• Connections: 4-wire flying lead (1 pair for Room Controller, 1 pair for Audio Bus)

Required Components

• IH121K Single-Gang or IH122K Dual-Gang Mounting Kit
• NC160 Central Equipment Module
• NC415A Master Station
• LI122/ LI122BL Room Controller with Dome Light or PM120 Room Controller
• LS415AUD Audio Visual License

Optional Components

• RP131K Single-Gang Blank Plate (5 each)
• SF121 Single Patient Station, SF122 Dual Patient Station, and/or SF123 Two-Button Pull-Cord Station
