TekTone IH121K Single-Gang Mounting Kit—bezel & plate for SF121, SF122 & SF123. Mount to a 1-gang box and/or ring.

TekTone IH121K Nurse Call Station Integration

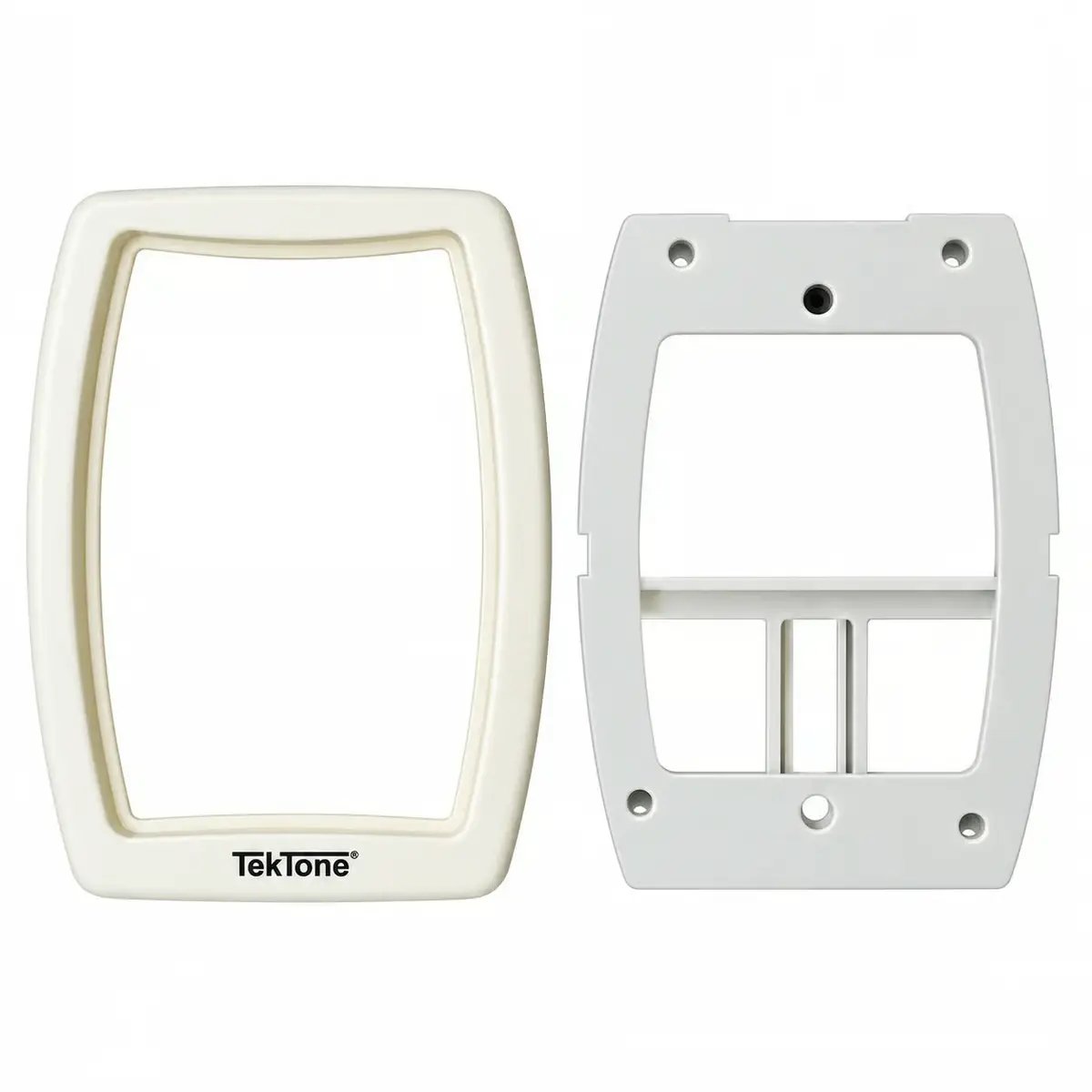

TekTone IH121K Single Station Mounting Kit allows a single SF-series station to be mounted in a single housing. An IR160, SF121, SF122, SF123, or SF124 station may be installed in the IH121K to meet the needs of the facility. The plastic bezel snaps onto the included mounting plate, leaving no visible screw holes. The pull-switch slider and pull-string are included in the kit. The IH121K is packaged with a locking screw for added security.

Required Components

• IR160: Audio Station
• SF121: Single Patient Station
• SF122: Dual Patient Station
• SF123: Customizable 2-Button Pull-Cord Station
• SF124: Staff Peripheral Station

Features

• Enables single mounting of SF-series stations on Tek-CARE Nurse Call Systems

Specifications

• Dimensions: 4.58"H × 3.25"W × 1.03"D (116 mm × 83 mm × 26 mm)
• Environment: 0°C–60°C
• Construction: Flame-retardant (UL® 94V-0) plastic faceplate
• Mounting: Attach included back plate to a standard single-gang ring, or single-gang ring and box

Listings

• cULus LISTED: UL® 1069 Listed and cUL® Listed to CSA C22.2 No. 205; UL® File Number E71599
• RoHS: RoHS Compliant
