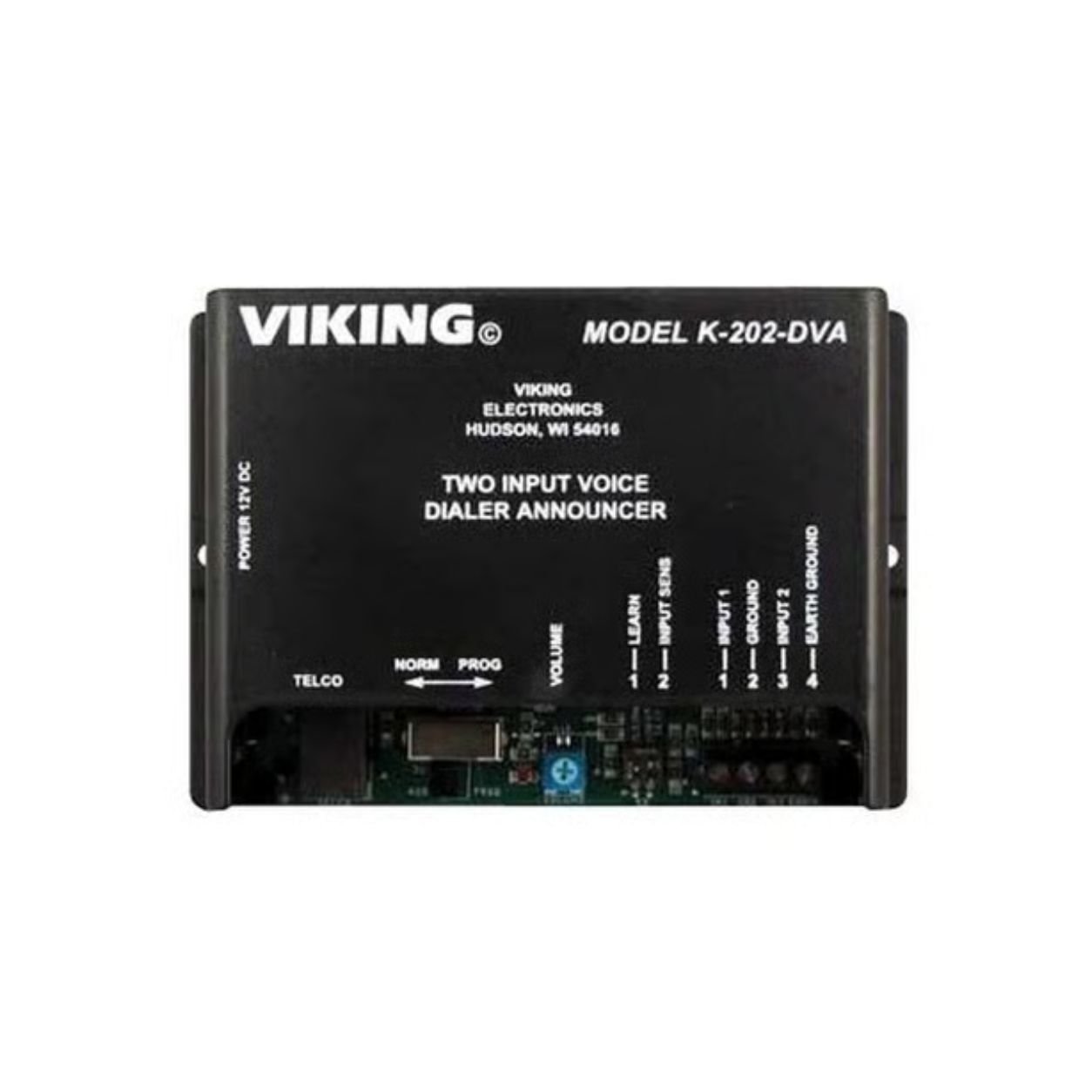

Auto Voice Dialer Two Input Voice Alarm Dialer

We offer System Design Help, Discounted Pricing on ALL system packages. Contact Us Today!

  • INFO
  • Two Input Voice Alarm Dialer


    • Security / burglar / fire alarm notification
    • System alarm or equipment malfunction notification
    • Operating temperature warning notification
    • Contacting personnel via numeric pagers


    • Non-volatile memory, no batteries required
    • Stores up to seven 32-digit phone numbers per input (fourteen 32-digit numbers total)
    • 2 minutes of record time (1 minute per input)
    • Programmable message repeat counter
    • Programmable lap counter
    • Two inputs programmable for normally open or normally closed and enabled or disabled
    • Programmable ring delay for remote programming and alarm polling
    • Programmable qualifier timer for each input (time for an event to be qualified as an alarm)
    • Programmable resume timer for each input (time following reset for input to become active again)
    • Call progress detection
    • Programmable ringback limit for call progress
    • Remote security and access codes
    • Local or remote programming and recording
    • Compatible with the RC-2A and RC-3 remote DTMF controllers
    • Phone numbers may be programmed as pager numbers (no voice message played)
    • Programmable hookswitch flash before dialing
    • Local reset input
    • Local alarm state indication LED


    • FCC Part 68
    • FCC Part 15
    Power 120VAC / 12VDC 500 mA UL listed adapter provided
    Dimensions 5.25″ x 3.6″ x 1.75″ (133mm x 91mm x 44mm)
    Shipping Weight 1.5 lbs (0.68 kg)
    Operating Temperature 32°F to 90°F (0°C to 32°C)
    Humidity 5% to 95% non-condensing
    Talk Battery 12VDC
    Touch Tone Dialing Speed Normal – 100ms on / off, Fast – 50ms on / off
    Minimum CPC Detection Time 320ms
    Total Message Record Time 2 minutes
    Sampling Rate 64K (equivalent)
    Input Detection Time 90ms with Qualifier Timer set to 0
    Resolution Qualifier Timer 1 second to 18 hours
    Resolution Resume Timer 1 second to 18 hours
    Connections (1) RJ11 jack for telco connection, (6) cage clamp screw terminals
