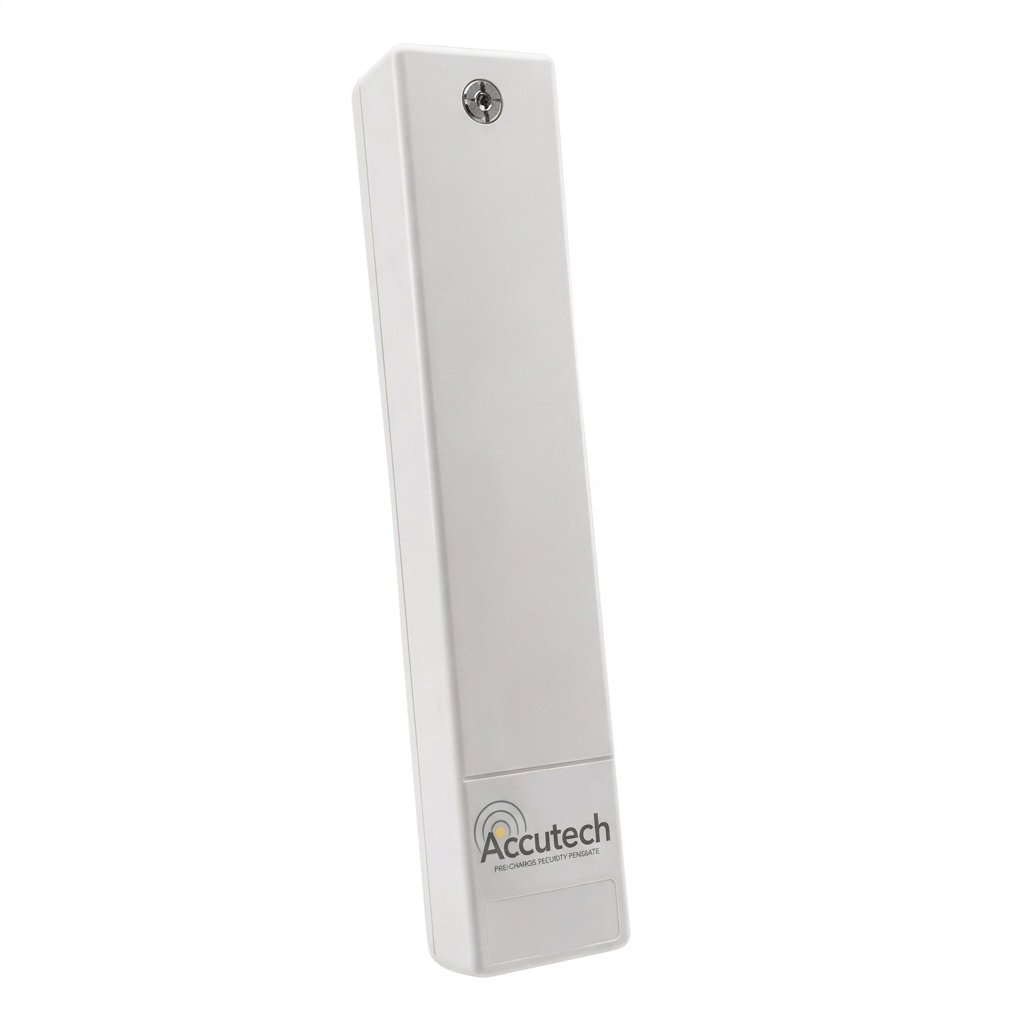

Accutech LC1400T Controller (with plug in power and bit)

Accutech LC1400T Controller (with plug in power and bit)

Electrical

• Operating Voltage: Minimum 15 VDC

• Current Consumption: Maximum: 250mA

Mechanical

• Construction: Vacuum molded fire-rated ABS

• Size: 13.25” x 2.50” x 2.25”
• Weight: 1 US pound
• Mounting Surface: Four 3/16” screws

Operating Characteristics

• Transmit Frequency: Nominal 131 kHz (129-137kHZ for Stagger tuning)
• Receive Frequency: 418 MHz
• Frequency Range: up to 10 feet radius (360O)
• Output Impedance: 300 ohms nominal
• Internal peizo: 85 db at 10 feet
• Communication: RS485
• Baud Rate: 115200 bps
• Firmware Version: 0.0.2

Environmental

• Environmental: 32° to 120° Fahrenheit

• Intended for indoor use only.
